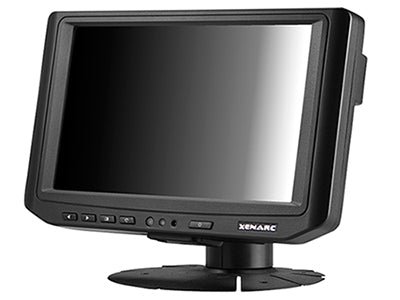

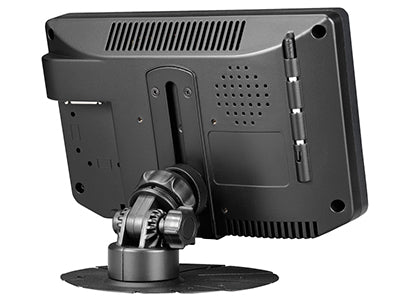

XENARC 702CSH 7" Sunlight Readable Touchscreen LED LCD Monitor w/ HDMI/DVI/VGA/AV Inputs

XENARC

IN STOCK

Xenarc Technologies Corp. extended the versatility of its iconic 700 series line of displays with the introduction of a Sunlight Readable 7" LED LCD screen with HDMI input and Capacitive Touchscreen. The unit uses the latest 7" LCD Panel with a 1024x600 native resolution while incorporating our latest LED backlight technology for a brightness rating of 1,000NIT and an ambient light sensor which dims the backlight automatically when required. The high brightness of this monitor makes it ideal for outdoor applications under direct sunlight as well as any other applications where a bright, non-reflective display may be effective.

This latest product in the 7" line offers superior readability under sunlight. With our proprietary technology, we are able to increase the brightness rating to 1,000NIT, and the Contrast Ratio to 700:1. Sunlight readability is further enhanced by it's advanced Anti-Reflective coating. In addition, Chip Monolithic Ceramic Capacitors are used though out the unit for improved stability and durability especially in extreme temperature conditions.

This versatile product incorporates the innovation of our HDMI 7" models along with a Capacitive Touch-Screen panel. Capacitive senseing provides a more responsive touch interface than resistive touch. It achieves this by using the capacitance of human skin to detect the proximity or position of the input. Proximity sensing allows the touch interface to work even if protective glass or coating is used over the display. Use the convenient touch-screen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system. The touch screen utilizes the USB port as the interface. You can connect several 702CSH monitors to your computer and the touchscreens would work simultaneously through the multi-monitor support.

FEATURES
  • 1,000NIT Sunlight Readable with Long Life LED Backlight
  • Automatic Backlight Adjustment through Built-in Ambient Light Sensor
  • Projected Capacitive Multi-Touch Touchscreen (USB)
  • Anti-Reflective and Anti-Fingerprint Coating
  • Plug-N-Play with Windows 7 and up and Android devices (Downloadable drivers for other OS)
  • Multi-Monitor Touchscreen Support
  • HDMI Input x 1 (HDCP), VGA Input (15 pin D-SUB) x 1 & Video Input x 2
  • DVI Input through included DVI to HDMI Adaptor
  • Audio Input x 3 / Built-In Speaker
  • 1024x600 Native Resolution, 16x9 Aspect Ratio
  • Solid Capacitors for Improved Durability
  • High Performance Image and Video Signal Processor
  • AISS - Advanced Image-Scaling and Shaping
  • Last Input and Power Setting Memory
  • IR Remote Control
  • Auto Power-On upon signal detection
  • Mirror and Vertical Image Flip
  • Function to Disable Front Button(s) and On Screen Text
  • AV2 Auto Switching for Backup Camera
  • 360° Copper Monitor Stand
  • VESA 50mm Mounting Holes
  • 26-Pin Heavy-Duty Connector with Connector Locking
  • Supports 10V DC ~ 35V DC
  • "E" Mark Certified for Automotive use
  • FCC, CE, E13 Certification
  • ROHS Compliant
  • 24 Month Warranty
  • 30 Day No dead Pixel Guarantee

    SPECIFICATIONS
  • Screen Size: Diagonal 7" (16:9)
  • Physical Resolution: 1024 (H) x 600 (V) WVGA
  • Supported PC Resolution: 640 x 480 ~ 1920 x 1080
  • Supported HDMI video Signal: 480i, 480p, 720i, 720p, 1080i, 1080p
  • Dot Resolution: 3072 x 600 = 1,843,200 (dots)
  • Brightness: 1,000 cd/m²
  • Contrast Ratio: 700:1
  • Viewing Angle: 150° Horizontal, 145° Vertical
  • Response Time (Tr/Tf): 10/15ms (Typ.)
  • Touch Screen Interface: USB port
  • Operating Voltage Range: DC 10V ~ 35V
  • Power Supply: DC 12V
  • Power Consumption: < 10W
  • Operating Temperature: -4°F ~ 158°F (-20°C ~ 70°C)
  • Storage Temperature: -22°F ~ 176°F (-30°C ~ 80°C)
  • Dimension (mm): 196W x 121.5H x 35D
  • Weight (lb): 1.54

    WHAT'S IN THE BOX
  • Copper Monitor Stand
  • AC Adaptor or Cigarette Lighter Car Adaptor or 5M Power Lead
  • 1.8M Connection Cable
