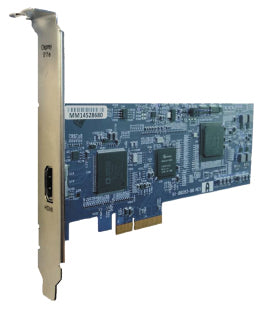

Single Channel 3G HD HDMI (up to 1920x1080p 60) with Embedded Audio Video Capture Card
Video: One Channel 3G HD HDMI (Not for HDCP protected content)
Embedded Audio: HDMI (4 channels LCPM)
Four Lane PCIe 1.1: Slots: x 4, x 8, or x 16
Osprey SimulStreamA standard feature on all Osprey 800 series cards, SimulStream allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.Signal Loss InsertionIn the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text over lay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.Video Pre-ProcessingVBI/VANC closed-caption extraction/on-screen renderingLogo/bitmap overlayScaling, cropping, de-interlacing and inverse telecineProcAmp controlVector Scope and Lumi ScopeDriver SupportMicrosoft DirectShow APILinuxOsprey SDKAn Osprey SDK is available to allow developers to take full advantage of the Osprey 800e driver capabilities
SPECIFICATIONS
DescriptionOne channel HDMIFormatPCI Express (x4)Slots: x4, x8, x16PCIE 1.1Video Input1 x HDMI (non HDCP)Video Connector1 x HDMIVideo Modes1080i 50, 59.94, 601080p 23.98, 24, 25, 29.97, 30, 50, 60720p 23.98, 24, 25, 29.97, 50, 59.94, 60720 x 480 29.97, 30/p720 x 576 25, 50/pAudio InputHDMI 4 channels LCPM per inputAdapterNoneAvailable DriversMicrosoft Windows, LinuxDimensions6.6"L x 2.71"HWeight~113 gramsPower Consumption11.5WOperating Temp Range0-40 degrees CRelative Operating HumidityBetween 5% and 80% (non-condensing)Operating Altitude Range0 to 3048 meters (10,000 feet)System recommendationsHigh quality video capture requires a PCIe bus with direct access to the CPUWarranty1 year limited hardware warrantyIn the BoxPCIe video capture cardLow profile bracket
Osprey SimulStreamA standard feature on all Osprey 800 series cards, SimulStream allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption and overlays facilitating simultaneous delivery to multiple applications.Signal Loss InsertionIn the event of signal loss, the Osprey card automatically replaces the lost video with color bars with options for text over lay and audio tones. This feature helps prevent unplanned stoppage of downstream applications upon signal loss.Video Pre-ProcessingVBI/VANC closed-caption extraction/on-screen renderingLogo/bitmap overlayScaling, cropping, de-interlacing and inverse telecineProcAmp controlVector Scope and Lumi ScopeDriver SupportMicrosoft DirectShow APILinuxOsprey SDKAn Osprey SDK is available to allow developers to take full advantage of the Osprey 800e driver capabilities
SPECIFICATIONS
DescriptionOne channel HDMIFormatPCI Express (x4)Slots: x4, x8, x16PCIE 1.1Video Input1 x HDMI (non HDCP)Video Connector1 x HDMIVideo Modes1080i 50, 59.94, 601080p 23.98, 24, 25, 29.97, 30, 50, 60720p 23.98, 24, 25, 29.97, 50, 59.94, 60720 x 480 29.97, 30/p720 x 576 25, 50/pAudio InputHDMI 4 channels LCPM per inputAdapterNoneAvailable DriversMicrosoft Windows, LinuxDimensions6.6"L x 2.71"HWeight~113 gramsPower Consumption11.5WOperating Temp Range0-40 degrees CRelative Operating HumidityBetween 5% and 80% (non-condensing)Operating Altitude Range0 to 3048 meters (10,000 feet)System recommendationsHigh quality video capture requires a PCIe bus with direct access to the CPUWarranty1 year limited hardware warrantyIn the BoxPCIe video capture cardLow profile bracket
