XLR Adapter 4 or 8 channels per system
32 or more microphones (60 channels available), North and South America and Japan, HD audio
44 or more microphones (80 channels available), North and South America and Japan, regular audio
56 or more microphones (120 channels available), Africa, Asia, Australia, and Europe, HD audio
76 or more microphones (160 channels available), Africa, Asia, Australia, and Europe, regular audio

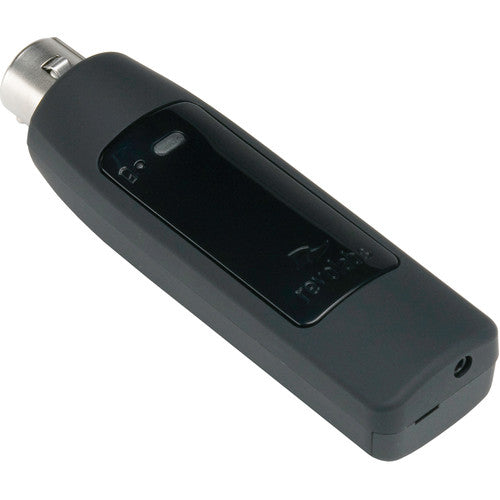

The Revolabs Executive Elite XLR adapter simply plugs into any dynamic handheld microphone, instantly transforming the unit into a wireless microphone on the Executive Elite system for use in audio or video conferencing, voice amplification, and other application.
Revolabs Executive Elite wireless microphones merge best-in-class audio with eye-catching design, setting the gold standard for excellence in wireless conference room audio. These innovative wireless microphones feature advanced technologies and extended capabilities that ensure superior audio pickup and sound quality, improved signal-to-noise ratio, enhanced digital signal communication over wireless links, and a user-friendly interface.
Revolabs latest advances in the use of the available frequencies allow more Executive Elite microphones to be deployed and used in the same space. Depending on the application, 44 or more wireless microphones can be deployed per area or room in the Americas and Japan, and 76 or more microphones in Europe, Asia and most other countries. In larger installations, several Revolabs Executive Elite base DSP units can communicate wirelessly to coordinate their microphone channels automatically, freeing users from the task of manually assigning and reassigning channels.
Boasting a sophisticated Fortune 500 look and feel, the Executive Elite wireless microphone line includes omni-directional, wearable, gooseneck, and directional microphones, as well as XLR and TA4 adapters. The line's stylish microphone charger tray lets you charge up to eight microphones of any type in the same charger simultaneously.
Once removed from the charger and placed on the conference room table, the Executive Elite microphones are ready for use. A single-button interface enables easy muting and un-muting of microphones, while indicator lights clearly identify the mute status of each unit and make it visible to all meeting participants.
NOTE: For the best audio performance in any environment or setting, it is recommended to have at least one microphone for every two participants.
Three wire synchronization bus
North and South America: 1920 to 1930 MHz
Japan: 1893.5 - 1906.1 MHz
Africa, Asia, Australia, and Europe: 1880 to 1900 MHz
300 feet (90 meters) line-of-sight
256-bit key (AES)
Automatic key updates every few minutes
20 Hz - 20,000 Hz
Battery: Sealed Li-Ion (field replaceable)
Always On Option: No
Mute LED: Yes
Battery LED: Yes
Frequency Response: 100Hz - 20,000Hz
RF Armour: No
Signal Noise Ratio: 80dB SPL @ 1KHz, 0dBV input signal
Charge Time: 3 hours
Talk Time: 8 hours
Standby Time: 44 hours
Dimension: 4.34" x 1.26" x 1.0"
Weight: 2.0oz (56.7 grams)
