YAMAHA YVC-1000 Unified Communications Microphone and Speaker System

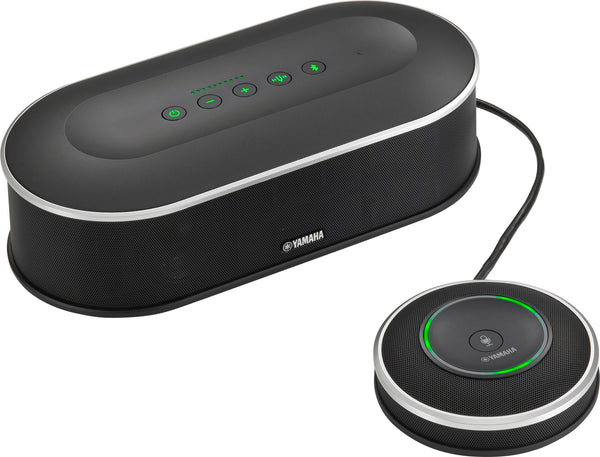

The YVC-1000 features separate microphone and speaker units that smoothly integrate audio and video for natural, comfortable remote communication. The high performance, full range speaker unit can be placed close to the display so that audio and video from the remote location blend naturally, while adaptive echo canceller and other Yamaha sound processing technologies facilitate stress-free conversation.

Fast, easy connection to PCs, smartphones, tablets and dedicated conferencing systems:
Connect to the YVC-1000 via USB, Bluetooth, or the audio terminals of a conferencing system for high quality audio in your conferences and meetings. This range of connection options allows you to quickly adapt to a variety of communications environments, as well as situations where conferencing might otherwise be difficult due to the lack of a landline, or internet connectivity issues.

Smooth Bluetooth connection using Near Field Communications (NFC) technology:
Connect simply and easily by placing an NFC-compatible smartphone or tablet over the NFC logo on the top of the control unit while the Bluetooth button is blinking.

GENERAL SPECIFICATIONS

Interface

Control Unit: USB 2.0 High Speed, Bluetooth, NFC (Near Field Communication)

Audio Input terminal (stereo RCA pin), Audio Output terminal (stereo RCA pin),

External speaker terminal (RCA pin) x 2, Power terminal, Microphone terminal

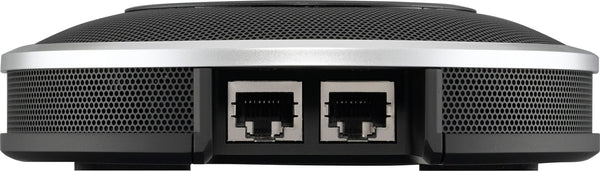

Microphone: Input and output terminals

Power consumption (max)

20 W (one connected microphone)

35 W (five microphones connected)

Radio interference standard

FCC (Part 15B) Class A, ICES-003

Power source

120 V (60 Hz)

Operating environment

Temperature: 0 to 40°C (32 to 104°F)

Humidity: 20 to 85% (no condensation)

Storage environment

Temperature: -20 to +50°C (-4 to 122°F)

Humidity: 10 to 90% (no condensation)

Dimensions

Control Unit (W x H x D): 332 x 95 x 162 mm (13.1 x 3.74 x 6.38 in)

Microphone (W x H x D): 136 x 36 x 136 mm (5.35 x 1.42 x 5.35 in)

Weight

Control Unit: 1.8 kg (4.0 lbs)

Microphone: 0.4 kg (0.9 lbs)

Supported OS

OS: 32-bit or 64-bit Windows 8.1, 32-bit or 64-bit Windows 8, 32-bit or 64-bit Windows 7, Mac OS X 10.9, Mac OS X 10.8

USB: USB 2.0 or later

Bluetooth

Bluetooth specification version: 2.1 + EDR

Supported profile: HFP (1.6), A2DP

Supported Codec: SBC, mSBC

Wireless output: Class 2

Maximum communication distance: 10 m (32.8 ft)

NFC

Compatible devices: NFC-compatible Android devices, versions 4.1, 4.2, 4.3, and 4.4

Voice guidance

English, Japanese, Chinese, Korean, French, Spanish, German

Accessories

Power cable (3 m (9.8 ft))

USB cable (5 m (16.4 ft))

Microphone cable (5 m (16.4 ft))

Quick Start Guide

Others

Firmware update (transfer from PC through USB)

AUDIO SPECIFICATIONS

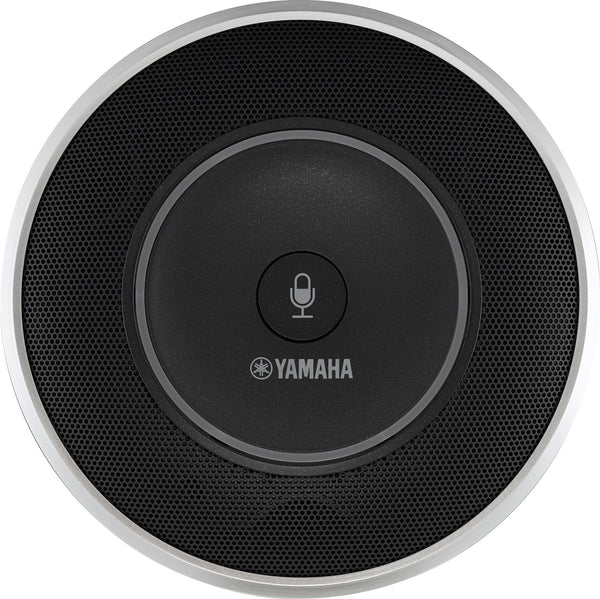

Microphone unit

Unidirectional x 3

Speaker unit

Full-range x 1

Maximum volume

95 dB (0.5 m (1.6 ft))

Frequency bandwidth

For sound pickup: 100 to 20,000 Hz

For playback: 100 to 20,000 Hz

Signal processing

Adaptive echo canceller, Noise reduction, Automatic tracking, Automatic gain control, Automatic room EQ, Dereverberation, Automatic audio tuning
