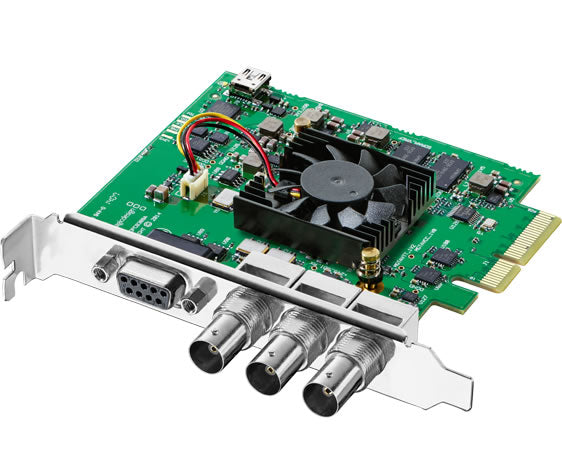

BLACKMAGIC BDLKSDI4K DeckLink SDI 4K

BLACKMAGIC

FREE Ground Shipping

OUT OF STOCK

DeckLink SDI 4K is perfect when you need an SDI only solution but demand the highest quality SDI capture and playback. You get incredible quality 6G-SDI on any PCI Express Mac, Windows or Linux computer. DeckLink SDI 4K is the world's smallest and most affordable multi rate SD/HD and Ultra HD SDI video card that lets you connect to any SD, HD, 2K and Ultra HD equipment. You also get RS422 deck control, internal keying and reference input for a complete solution for editing, paint and design.

CONNECTIONS
  • SDI Video Input
    1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
  • SDI Video Output
    1 x 10-bit SD/HD/2K/4K. Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4
  • SDI Audio Input
    16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
  • SDI Audio Output
    16 Channels embedded in HD/2K/4K. 8 Channels embedded in SD.
  • Sync Input
    Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD, 2K or UHD format.
  • Device Control
    Sony™ compatible RS422 deck control ports. Serial ports TxRx direction reversible under software control.
  • Computer Interface
    PCI Express 4 lane generation 1, compatible with 4,8 and 16 lane PCIe Slots.

    CODECS
  • Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4.

    SOFTWARE
  • Software Included
    Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Control Panel and Blackmagic driver on Linux.
  • Internal Software Upgrade
    Firmware built into software driver. Loaded at system start or via updater software.
  • Physical Installation
    PCI Express 4 lane generation 1, compatible with 4, 8, 16 lane PCI Express slots on Mac OS X, Windows and Linux. Please check the Support pages to see the full system requirements.

    SOFTWARE APPLICATIONS
  • Apple Final Cut Pro X
  • Adobe® Premiere Pro® CC
  • Avid Media Composer
  • After Effects® CC
  • The Foundry
  • DaVinci Resolve
  • Avid Pro Tools
  • Steinberg Cubase
  • Autodesk Smoke
  • Photoshop® CC
  • Other supported applications include: Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.

    VIDEO STANDARDS
  • SD Format Support
    625/25 PAL, 525/29.97 NTSC.
  • HD Format Support
    720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, and 1080p60.
  • 2K Format Support
    2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.
  • 4K Format Support
    3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24, 4096x2160p25.
  • SDI Compliance
    SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M ITU-R BT.656 and ITU-R BT.601.
  • SDI Metadata Support
    VITC read for 3:2 pulldown removal. VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.
  • Audio Sampling
    Television standard sample rate of 48 kHz at 24 bit.
  • Video Sampling
    4:2:2 and 4:4:4 (4K is 4:2:2)
  • Color Precision
    10-bit
  • Color Space
    REC 601, REC 709
  • Multiple Rate support
    SDI video connections are switchable between SD/HD/2K and UHD.

    PROCESSING
  • Colorspace Conversion
    Hardware based real time.
  • HD Down Conversion
    Built in, high quality hardware down converter outputs HD or SD on SDI output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
  • HD Up Conversion
    Software based up conversion from SD to 720HD or 1080HD on capture. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom.
  • Cross Conversion
    Software based cross conversion from 720HD to 1080HD and 1080HD to 720HD on playback.
  • Real Time Effects
    Apple Final Cut Pro™ internal effects. Adobe® Premiere Pro CC® Mercury Playback Engine effects. Avid Media Composer™ internal effects. DaVinci Resolve.

    OPERATING SYSTEMS
  • Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks or later.
  • Windows 7 or Windows 8.
  • Linux

    EMC CERTIFICATIONS
  • FCC, CE and C-Tick

    ENVIRONMENTAL SPECIFICATIONS
  • Operating Temperature
    5° to 40° C (32° to 104° F)
  • Storage Temperature
    -20° to 45° C (-4° to 113° F)
  • Relative Humidity
    0% to 90% non-condensing

    WARRANTY
  • 3 Year Limited Manufacturer's Warranty.
