Convert from HDMI to 12G-SDI. Works with all video formats including SD, HD, 6G and 12G-SDI rates and includes an up converter for converting HD to Ultra HD. Embed audio from balanced analog or AES/EBU and timecode input. Ideal for converting HDMI consumer cameras to SDI, or adding SDI outputs to computers with HDMI connections.
CONNECTIONS
SDI Video Output
Automatically matches the SD, HD and 12G-SDI HDMI video input.
XLR Audio Input
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
AES/EBU Audio Input
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode input.
HDMI 2.0
1 x HDMI type A connector with support for 2160p60.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K.
Updates and Configuration
USB or Ethernet.
Re-Clocking
Yes
SDI OUTPUT FORMATS
SD Format Support
525i29.97 NTSC, 625i25 PAL
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M-B, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601
SDI Video Rates
SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision
4:2:2 and 4:4:4
SDI Color Space
YUV
HDMI INPUT FORMATS
SD Format Support
525i29.97 NTSC, 625i25 PAL
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2K Format Support
1080p23.98, 1080p24, 1080p25
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
HDMI Color Space
REC 601, REC 709
HDMI Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
Copy Protection
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Format Conversion
HD up and down conversion
SOFTWARE
Software Control
Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB and Ethernet.
Internal Software Upgrade
Via included updater application.
OPERATING SYSTEMS
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.
SETTINGS CONTROL
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
POWER REQUIREMENTS
Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption
16 Watts
Operational Voltage Range
90 - 240V AC
PHYSICAL SPECIFICATIONS
5.51"W x 1.75"H x 6.69"D
1.28 lbs
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
0°to 40°C (32° to 104°F)
Storage Temperature
-20°to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
WHAT'S INCLUDED

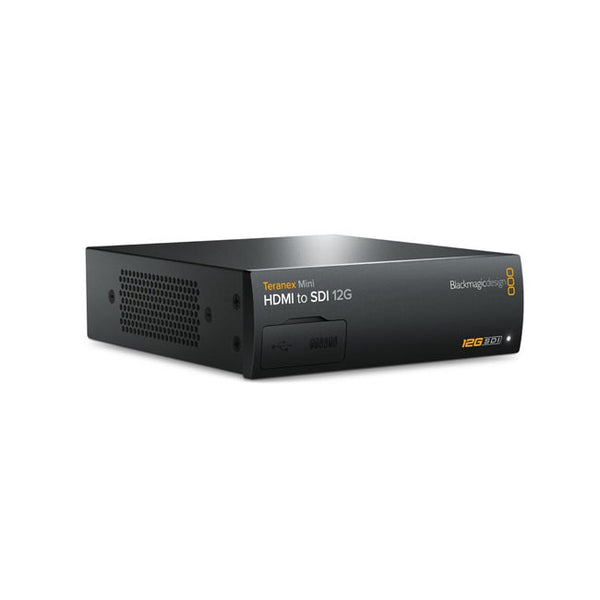

Teranex Mini - HDMI to SDI 12G
SD card with software and manual
WARRANTY
3 year Limited Manufacturer’s Warranty.
