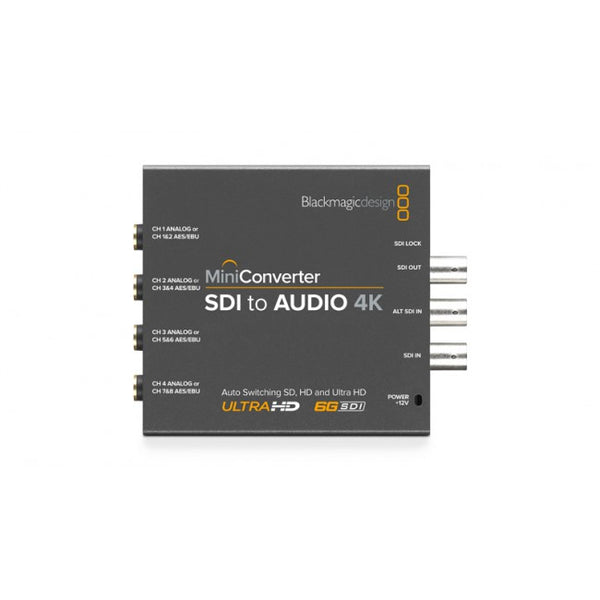

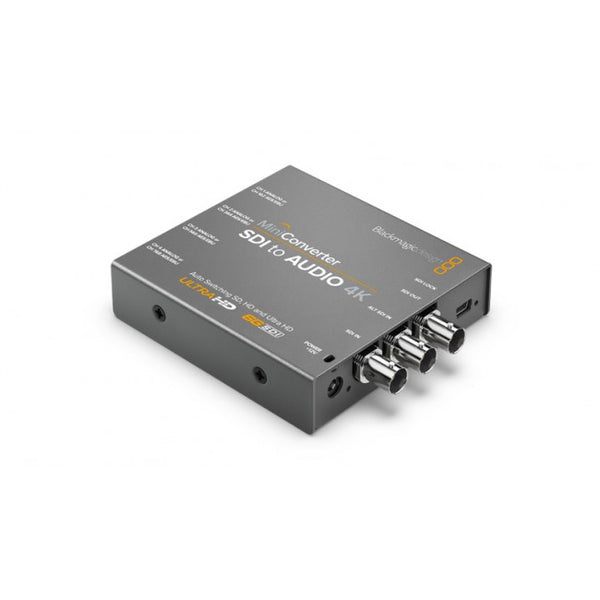

BLACKMAGIC CONVMCSAUD4K SDI to Audio 4K Mini Converter

BLACKMAGIC

FREE Ground Shipping

OUT OF STOCK

Mini Converter SDI to Audio 4K includes everything you need to de-embed 4 channels of analog audio or 8 channels of AES/EBU digital audio from any SDI video connection. Now you can access the audio in any SDI video connection for output to a massive range of audio equipment such as audio mixers, analog broadcast decks, audio monitors and more!

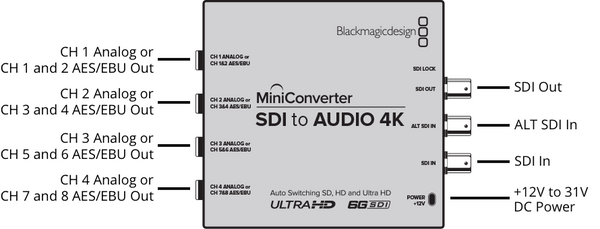

CONNECTIONS
  • SDI Video Input
    Switchable between SD, HD, 3G and 6G-SDI.
  • SDI Video Output
    Automatically matches the SD, HD, 3G and 6G-SDI video input.
  • Analog Audio
    4 channels of professional balanced analog audio with standard 1/4 inch jack connections.
  • AES/EBU Digital Audio
    8 channels of professional balanced digital with standard 1/4 inch jack connections.
  • SDI Redundant Input
    Automatically switches over if main SDI input is lost.
  • Multi Rate Support
    Auto detection of 4K, UHD, 2K, HD or SD SDI inputs.
  • Updates and Configuration
    USB
  • Reclocking
    Yes

    STANDARDS
  • SDI Compliance
    SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601, SMPTE ST-2036
  • SDI Video Rates
    SDI video connections are switchable between standard definition and high definition.
  • SDI Video Sampling
    4:2:2, 4:4:4
  • SDI Audio Sampling
    Television standard sample rate of 48 kHz and 24 bit.
  • SDI Color Precision
    4:2:2, 4:4:4
  • SDI Color Space
    YUV, RGB
  • SDI Auto Switching
    Automatically selects between SD, HD, 3G and 6G-SDI.
  • SDI Format Support
    525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30 and 1080PsF30, 1080p50, 1080p60, 2048x1080p23.98, 2048x1080p24, 2048x1080p25, 2048x1080PsF23.98, 2048x1080PsF24, 2048x1080PsF25, 3840x2160p23.98, 3840x2160p24, 3840x2160p25, 3840x2160p, 29.97, 3840x2160p30, 4096x2160p23.98, 4096x2160p24, 4096x2160p25, 4096x2160p29.97, 4096x2160p30.

    SOFTWARE
  • Software Control
    Mac OS X™ and Windows™ software upgrade via USB.
  • Internal Software Upgrade
    Via included updater application.

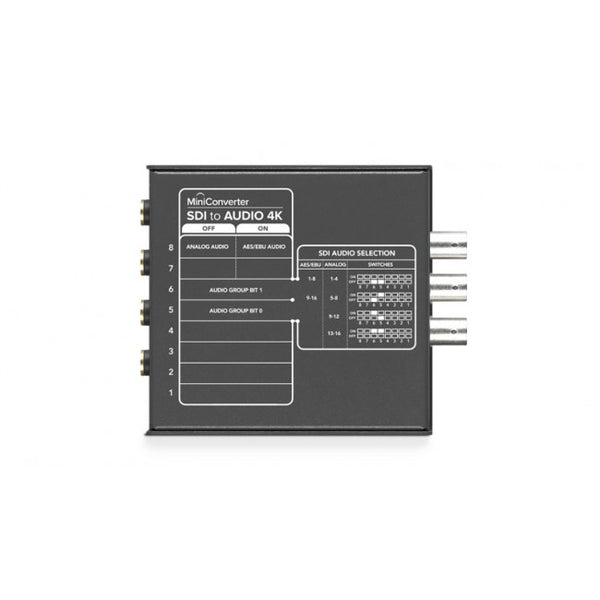

  • Settings Control
    Mini Switches or USB software.

    POWER REQUIREMENTS
  • Power Supply
    +12V universal power supply included with international socket adapters for all countries. Cable tie point.
  • Power Consumption
    5.52 Watts
  • Operational Voltage Range
    12V - 31V DC

    ENVIRONMENTAL SPECIFICATIONS
  • Operating temperature
    0° to 40° C (32° to 104° F)
  • Storage temperature
    -20° to 60° C (-4° to 113° F)
  • Relative Humidity
    0% to 90% non-condensing

    WHAT'S INCLUDED
  • Mini Converter SDI to Audio 4K
  • 12V universal power supply with international socket adapters

    WARRANTY
  • 3 Year Limited Manufacturer's Warranty.
