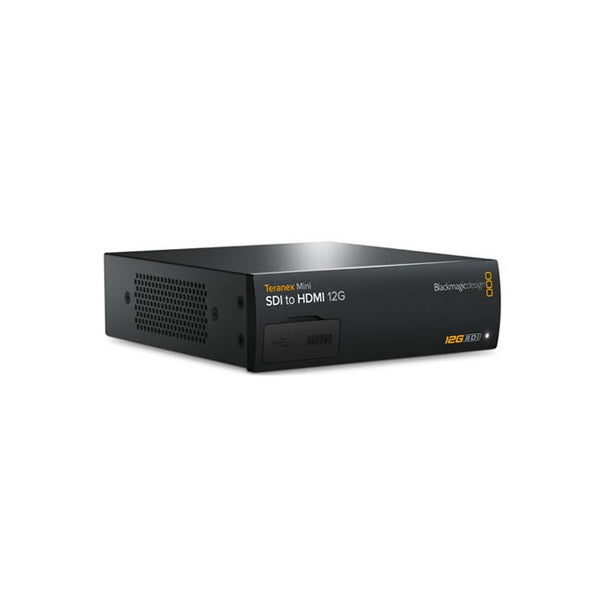

Convert from 12G-SDI to HDMI. Supports all video formats including SD, HD, 6G and 12G-SDI rates and includes down converter when working with a HDMI monitor, which will select the best format it can support. De-embed audio to balanced analog or AES/EBU formats and timecode output. Also includes Instant Lock on HDMI output as well as 33 point LUT. Perfect for using HDMI televisions as SDI broadcast monitors and for connecting to video projectors.
CONNECTIONS
SDI Video Input
1 x 12G-SDI SD/HD/2K/4K auto switching.
SDI Video Output
1 x 12G-SDI loop output.
HDMI
1 x HDMI 2.0 type A connector with support for 2160p60.
Analog Audio Output
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for Timecode output.
AES/EBU Audio Output
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for Timecode output.
Embedded Audio Support
8 channels.
Multi Rate Support
Automatic switching between SD/HD/2K and 4K. Instant lock on HDMI output.
Updates and Configuration
USB or Ethernet.
Re-Clocking
Yes
SDI INPUT FORMATS
SD Format Support
525i29.97 NTSC, 625i25 PAL
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
2K Format Support
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Format Support
4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p
SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
SDI Video Rates
SDI video connections are switchable between standard definition, high definition level A and level B 3G-SDI, 6G-SDI and 12G-SDI.
SDI Video Sampling
4:2:2 and 4:4:4
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision
4:2:2 and 4:4:4
SDI Color Space
YUV and RGB. 33 point LUT's can be loaded via Teranex Utility.
HDMI OUTPUT FORMATS
SD Format Support
525i29.97 NTSC, 625i25 PAL
HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60
2K Format Support
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K Format Support
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p
HDMI Color Space
REC 601, REC 709
HDMI Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
SOFTWARE
Software Control
Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB or Ethernet.
Internal Software Upgrade
Via included updater application.
OPERATING SYSTEMS
Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.
SETTING CONTROL
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility.
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons.
POWER REQUIREMENTS
Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).
Power Consumption
16 Watts
Operational Voltage Range
90 - 240V AC
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
0°to 40°C (32° to 104°F)
Storage Temperature
-20°to 60°C (-4° to 140°F)
Relative Humidity
0% to 90% non-condensing
WHAT'S INCLUDED
Teranex Mini - SDI to HDMI 12G
SD card with software and manual
WARRANTY
3 year Limited Manufacturer’s Warranty.
