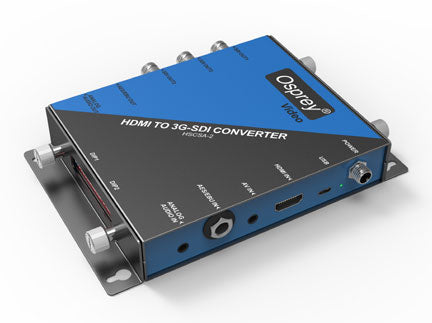

The scaling converter series of products includes these all-in-one solutions to your SDI and HDMI needs. Supporting conversion from SDI to HDMI (SHCSA-2) or HDMI to SDI (HSCSA-2) as well as scaling, audio and color space options, these unique tools also feature video frame rate conversion and up/down scaling options. AES/EBU and analog audio can be embedded into the workflow or de-embedded for external monitoring. Multiple video output options enable confidence monitoring of the workflow.
The settings can be changed by manual dip switches as well as a USB interface. Up to four custom settings can be configured with the software and are accessible via either interface. Diagnostic data overlay can be enabled to monitor video information.
SPECIFICATIONS
Input Video Formats JDMI1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1920x1080i 50, 59.94, 60
1280x720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
576i, 576p
480i, 480p
Input Video Formats AV NTSC, PAL
Output Video Formats SDI 1920x1080p 24, 25, 30, 50, 60
1920x1080i 50, 59.94, 60
1280x720p 24, 25, 30, 50, 60
625i
525i
Color Space and Precision HDMI: YUV 4:2:2, YUV 4:4:4, RGB 4:4:4
SDI: YUV 4:2:2
Video Input HDMI 1.3a
CVBS (composite)
Video Output 3G-SDI
Audio Input Embedded SDI, analog stereo, AES/EBU
Audio Output Embedded HDMI, analog stereo, AES/EBU
Size 5" x 2.4" x 0.95"
Weight 0.7 lb
Power 12V 6W max
In the Box Converter
International wall power supply
Mounting brackets
USB and AV breakout cable
Warranty 2 years
