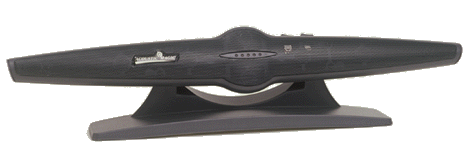

Unlike first generation array microphones which have a fixed "listen" direction, the Acoustic Magic Voice Tracker Array Microphone automatically locates and electronically steers toward the talker.Automatic electronic steering of "listening beam" to talker location
Selectable steering limits (90 degrees and 180 degrees) for speech recognition and teleconferencing modes
Selectable LDS to reduce annoying interference of additional talkers during speech recognition or feedback during teleconferencing
Two stage noise reduction (spatial filtering and noise reduction processing)
8 element, 18 inch long array for maximum range
5 element "in range" light to indicate location of chosen talker and sufficiency of signal
Microphone tilt capability to facilitate desktop, monitor top, ceiling, or wall mounting
Weight: 2 pounds
Power: converter from 120V AC to 6V DC included
Compatible with a variety of operating systems including:
Freedom of Movement
For speech recognition applications, it is no longer necessary to sit rigidly in front of the microphone. The user is free to lean backwards, sideways, or even move around.
For teleconferencing applications, several talkers can take part since the Voice Tracker Array Microphone rapidly steers to the individual participants.
The Voice Tracker Array Microphone improves signal-to-noise ratios in two ways. First, its digital signal processor creates a listening beam (like a searchlight) that focuses on the talker and spatially filters noise from other directions. Second, its proprietary noise reduction algorithms filter out background noise and reverberations that are present in the acoustic environment.
Works at Long Range
The Voice Tracker Array Microphone contains the largest number of array elements available today, which, when combined with its two stage noise reduction algorithms, give it the longest effective range of any array microphone.
Easy to Use
Our patented steering technology employs digital electronics and proprietary embedded algorithms. There are no moving parts, so the Voice Tracker Array Microphone is rugged, reliable, and easy to use. Simply plug it into your computer's sound card and a wall outlet. No software needs to be loaded, and there is no drain on your computer's processing capacity.
Suppresses Interfering Sounds
The Voice Tracker Array Microphone is also the only array microphone to employ Location Dependent Squelch (LDS, Patent Pending) which de-sensitizes the microphone to sounds coming from pre-selected directions. Consequently, the array can reduce unwanted sounds coming from directions outside its field of view.
Apple/Macintosh: Mac OS, Mac OS X
Microsoft: Windows 3.x, Windows 95, Windows 98, Windows NT, Windows 2000, Windows ME, Windows XP, Windows Vista
Analog Output: (6ft male/male audio cable included)
3.5mm ministereo jack
Same signal on tip & ring
500 ohm output impedance
100Hz to 11,250 Hz
Weight: 2.5 lbs
Power Equipment: (wall-powered converter included)
Center Pin Positive
