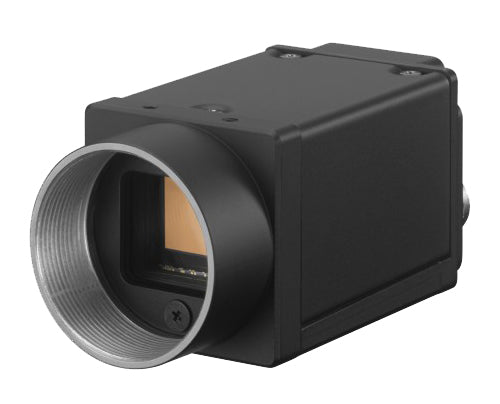

SONY XCGCG160C 1/2.9-type Global Shutter CMOS SXGA Resolution Color Camera

SONY

ITEM SHIPS DIRECTLY FROM MANUFACTURER. WE WILL NOTIFY YOU IF IT IS NOT AVAILABLE FOR SHIPMENT.

The XCG-CG160 (black & white) and XCG-CG160C (color) combines the best of Sony technology in a convenient form factor which is optimised for use within both the industrial vision and non-manufacturing vision markets. The XCG-CG160 draws upon Sony's Global Shutter CMOS sensor technology, combining the IMX273 1.6MP sensor with SXGA resolution with a rich heritage of complete camera technology, bringing the best combination of performance and quality.

The XCG-CG160 incorporates the latest Pregius GSCMOS sensor providing the best combination of resolution and frameframe tailored for use in production and inspection environments where GigE Vision is the prefered architecture.

The XCG-CG160 provides a simple migration path from CCD to GSCMOS without necessarily having to upgrade or change architecture. The IMX273 shares comparable sensor and pixel size characteristics with the well regarded Sony ICX445, but offers huge technological improvements in sensitivity, dynamic range, noise reduction and frame rate capability.

The XCG-CG160 has a resolution of 1456 (H) x 1088 (V) (effective pixels) with a frame rate of 70 fps and supports GigE Vision 1.2 / 2.0 with a one cable PoE capability.

FEATURES
  • Sony IMX273 1.6MP
  • 75 fps
  • Compact size
  • GigE Vision 2.0/1.2
  • Gigabit Ethernet with PoE
  • IEEE1588 (PTP) compliant
  • Area Gain
  • Advanced Image Processing
    - Defect Pixel Correction
    - Shading Correction

    SPECIFICATIONS
  • Image Sensor: 1/2.9-type CMOS Image sensors with a global shutter function (PREGIUS)
  • Image Sensor Type: IMX273
  • Camera Type: Farbe
  • Effective Pixels: 1456(H) x 1088(V)
  • Image format: 1440(H) x 1080(V)
  • Resolution Depth: 8, 10, 12-bit, digital
  • Frame Rate: 75fps
  • Cell Size: 3.45 μm x 3.45μm
  • Minimum illumination: 12 lx (Iris: F1.4, Gain: +18 dB, Shutter: 1/30 s)
  • Sensitivity: F5.6 (400 lx, Gain: 0 dB)
  • Gain: Auto, Manual : 0 dB to +18 dB
  • Shutter Speed: 2 s to 1/100,000 s
  • Digital Interface: GigE Vision 2.0/1.2
  • Interface Type: Gigabit Ethernet with PoE
  • Lens Mount: C-Mount
  • Flange Back: 17.526 mm
  • Storage Temperature: -30° to 60 °C
  • Operating Temperature: -5° to 45° C
  • Power Requirements: DC +12.0 V
  • Power Consumption: 3.3 Watt
  • Shock Resistance: 70 G
  • Vibration Resistance: 10 G (20 Hz to 200 Hz)
  • Mass: 65g
  • Dimensions (W x H x D): 29 x 29 x 42mm
