MAGEWELL 11080 Pro Capture Dual HDMI (PC-200-DE-HDMI)

MAGEWELL

FREE Ground Shipping

IN STOCK

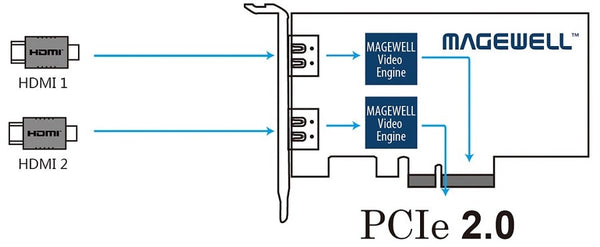

Two channel HD capture card
  • HDMI x 2 + embedded audio x 2

    Supported OS
  • Windows 7/8/8.1/2008/2008 R2/2012 (x86 & x64)
  • Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)

    Supported APIs
  • Windows
    -DirectShow
    -DirectKS
    -Wave API/DirectSound/WASAPI
  • Linux
    -V4L2
    -ALSA

    Supported Software
  • VLC
  • VirtualDub
  • OBS
  • xSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2 encoding/streaming software

    Input Interfaces
  • 2x HDMI type A
    -DVI 1.0
    -HDMI 1.4a

    Output Interfaces
  • PCIe Gen2 x4

    Input Features
  • Support for input video resolutions up to 2048×2048 pixels

    HDMI Specific Features
  • 225MHz HDMI receiver
  • Adaptive HDMI equalizer support for cables lengths up to 30M
  • Support for customized EDID
  • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
  • Full colorimetry support
  • Support for 8/10/12-bit color depths
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for up to 8-channel IEC60958/IEC61937 audio streams
  • Support for extraction of audio formation information & channel status data
  • Support for extraction of video timing information
  • Support for extraction of 3D format information
  • Support for extraction of Sony/Canon DSLR time code

    Video Output Formats
  • Support for output image resolutions up to 2048×2048 pixels
  • Support for output frame rates up to 120fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. )
  • Support for 4:2:0 8-bit output formats: NV12, I420, YV12
  • Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY
  • Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32
  • Support for 4:4:4 10-bit output formats: V410, Y410
  • More output formats are supported via Pro Capture SDK for DirectKS

    Video Processing Features
  • Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one
  • Full 10-bit video processing
  • Video cropping
  • Video scaling
  • Video de-interlacing
    -Wave
    -Blend top & bottom field
    -Top field only
    -Bottom field only
  • Video aspect ratio conversion
    -Auto or manual selection of input aspect ratio
    -Auto or manual selection of output aspect ratio
    -Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
  • Video color format conversion
    -Auto or manual selection of input color format & quantization range
    -Auto or manual selection of output color format, quantization range & saturation range
    -Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    -Support for Limited or Full quantization range
    -Support for Limited, Full & ‘Extended gamut’ saturation range
  • Video frame rate conversion
  • Video OSD composition
    -Support for PNG OSD image (up to 2048×2048)
    -Support for dynamic loading of RGBA OSD image via SDK

    Multiple Cards per System
  • Support for multiple cards plugged to one system
  • On-board rotary switch to set card number, with 16 positions from 0 to F
  • System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on
  • The video and audio device names displayed in your software will include the card number (set by the rotary switch)

    Multiple Output Streams
  • Unlimited output streams for any one input channel
  • Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

    Ultra Low Latency Support
  • Latency of 64 video lines
  • Partial notification mode in SDK

    Timestamp & A/V Synchronization
  • Hardware based 100ns high resolution clock
  • Audio frames (192 audio samples) & video frames are stamped with hardware clock
  • Hardware clock can be synchronized across cards (via SDK)

    Video Output SG-DMA
  • ~700MB/s per channel DMA bandwidth in PCIe 2.0 system
  • ~400MB/s per channel DMA bandwidth in PCIe 1.0 system
  • Support for auto detection of Intel tiled GPU surface
  • Support for DirectGMA for AMD video adapter chipsets
  • Support for GPUDirect for Nvidia video adapter chipsets

    SDK
  • Pro Capture SDK for DirectShow for easy integration (Windows)
  • Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)

    Windows Driver Tweaks
  • All options can be controled by three levels of registry key: global level, product level and device level
  • Video, Audio, Crossbar filter names can be customized via registry keys

    Firmware Upgrade
  • Multiple cards in one system can be upgraded simultaneously
  • Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)

    LED Indicator
  • Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.

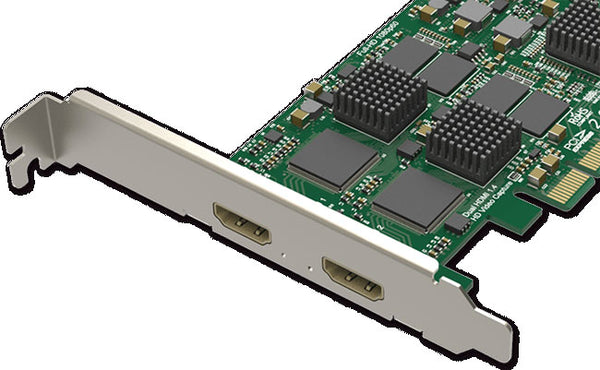

    Form Factor
  • Low profile PCIe x4 Add-on Card
  • 115.99mm x 68.88mm (without PCI bracket)

    Accessories
  • Low Profile Bracket

    Power Consumption
  • Max current at 12V ~0.9 A
  • Max current at 3.3V ~0.6 A
  • Max power consumption ~12.8 W

    Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
