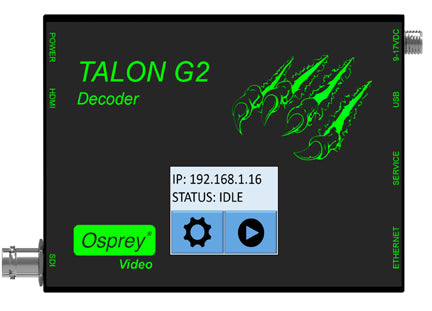

Osprey Talon is a small form-factor H.264 video decoder designed to be easy to use and portable. Using its GigE Ethernet port, Talon can decode up to 4 RTP or UDP streams (Unicast/Multicast) and display them in a resolution of up to 1080p60 via the HDMI / SDI outputs. Talon can also play .TS files from an external flash drive via its USB 2.0 port. It features a fanless design with a low power consumption of <6W. The wide input voltage range of 9VDC - 17VDC also make it a perfect candidate for battery operated equipment and installations.
FEATURESMultiple PIP Options
SDI and HDMI Outputs
Touch Display for easy Configuration
Closed Caption Support
ZIXI Support
APPLICATIONS Multi-Stream Monitor
Point-to-Point Source Monitor
Digital Signage
MISSION CRITICAL DESIGN Auto Start after Power Outage
Reliabale, Solid Hardware Based Decoder
Silent, Fan-less Operation
Low Power Consumption
SPECIFICATIONS
Video Input H.264 RTP/UDP multicast and unicast stream
H.264 .TS file
Max Video Input Capacity 1 x 1080p60
2 x 1080p30
2 x 720p60
3 or 4 x 720p30
Video Output Mode HDMI and SDI (Parallel) 720p 50, 60
1080p 25, 30, 50, 60
Closed Caption SDI output with EIA-608 and EIA-708 closed caption support
Touch Display IP Address
Status indicator decoding/idle
Decoding start/stop
Change output resolution
Change output configuration
LED Indicators Power, unit ready, unit decoding
In the Box Talon G2 hardware decoder
International power supply
Mounting brackets
