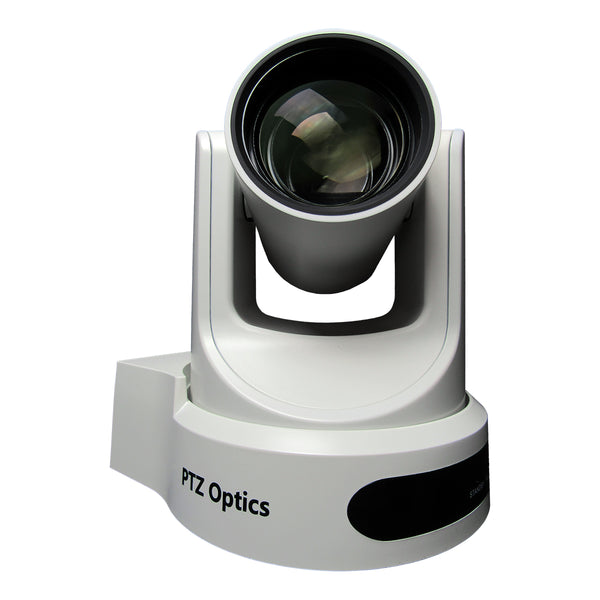

PTZOPTICS PT30X-SDI-WH-G2 30X Zoom 3G-SDI Camera (White)
PTZOPTICS PT30X-SDI-WH-G2 30X Zoom 3G-SDI Camera (White)
PTZOPTICS PT30X-SDI-WH-G2 30X Zoom 3G-SDI Camera (White)
PTZOPTICS PT30X-SDI-WH-G2 30X Zoom 3G-SDI Camera (White)

PTZOPTICS PT30X-SDI-WH-G2 30X Zoom 3G-SDI Camera (White)

PTZOPTICS

FREE Ground Shipping

IN STOCK
The PTZOptics 30X-SDIis a 1080p camera with 30X optical zoom for capturing HD images atlong distances. With support for 3G-SDI, HDMI, and IP streaming (H.264, H.265,& MJPEG),this camera is ideal for broadcasting high definition video signals for broadcast, recording,or video conferencing applications.

  • 60.7degree wide-angle lens.•High performance in low light scenarioswithWide Dynamic Range.
  • Full 1920x1080p HD Resolutions up to 60 frames per second.
  • 2D and 3D noise reduction with our latest “low noise CMOS sensor”.
  • RS232 &RS485(Serial),andIP (LAN/WAN) control
  • H.264, H.265, & MJPEG streaming over RJ-45 LAN port
  • HDMI, 3G-SDI,&IP streaming (all 3 simultaneously)
  • PoE (Power over Ethernet) or 12VDC
  • RTMP & RTSP IP streaming

    What's in the Box
  • 30X Zoom 3G-SDI Camera
  • Power Adapter + Cord
  • IR Remote Control
  • RS-232C Cable
  • User Manual

    Camera & Lens
  • Video Sensor: 1/2.7” CMOS, 2.07 Mega Pixels
  • Frame Rates: 1080p/60, 50, 30 & 25, 1080i/60 & 50, 720p/60, 50, 30 & 25
  • Frame Rates (CVBS): 576i/30, 480i/30
  • Focal Length: 30x, F4.42mm-132.6mm, F1.8-F2.8
  • Lens Zoom: 30x
  • Field of View: 60.7°
  • Min Lux: 0.5 Lux at F1.8, AGC ON
  • Shutter Speed: 1/30s -1/10000s
  • SNR: ≥55dB
  • Vertical Flip & Mirror: Supported
  • Horizontal Angle of View: 2.28° (tele) to 60.7° (wide)
  • Vertical Angle of View: 1.28° (tele) to 34.1°(wide)
  • Working Environment: Indoor

    Pan & Tilt Movement
  • Pan Movement: ±170°
  • Tilt Rotation: Up: 90°, Down: 30°
  • Presets: 10 via IR (255 via Serial or IP)

    Rear Board Connectors
  • Video Output Interface: HDMI, 3G-SDI, IP Streaming, CVBS
  • Network Interface: RJ45
  • Audio Interface: Line In, 3.5mm (HDMI& IP Stream Only)
  • Communication Interface: RS-232, RS485, PELCO-D/P
  • Baud Rate: 2400/4800/9600 bits
  • Power Supply Interface: JEITA type, Power Adapter (DC IN 12V)
  • 3G-SDI Interface: BNC –75 Ohm, Female
  • USB 2.0 Interface: Future Use

    Electrical Index
  • Power Supply: 12W (Max)
  • Input Voltage: 12V DC (10.8 -13.0V DC)or PoE 802.3af

    Physical
  • Dimension (in.): 5.6W x 6.5H x 6.7D (7.8H max w/ Tilt)
  • Dimensions (mm): 142W x 164H x 169D (198H max w/ Tilt)
  • Box Dimensions: 9”x9”x10” | 229mmx254mmx229mm
  • Camera Weight: 3.10 lbs. (1.41 kg)
  • Boxed Weight: 5.4 lbs. (2.45 kg)
