Roland's new video converters address the demand for high-quality, lossless video and audio converters for live/post production as well as installed systems. They include the Roland VC-1-HS (HDMI to SDI), VC-1-SH (SDI to HDMI), and VC-1-DL (Bi-directional SDI/HDMI with audio/video delay and frame sync).
The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.

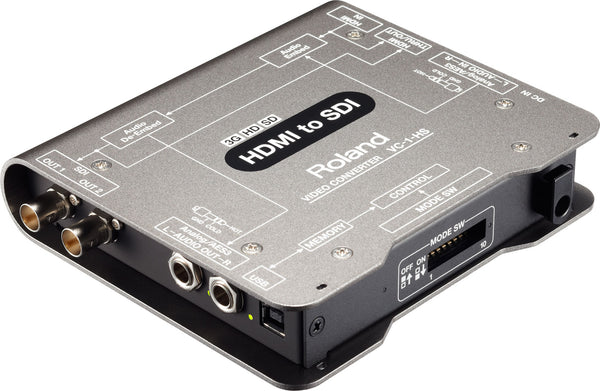

Increasingly HDMI video cameras are being used for live production. The VC-1-HS converts, extends and embeds audio from HDMI to SDI. This converter is especially complimentary to the Roland V-1600HD and V-800HD multi-format video mixers when you want to use SDI signals for camera inputs on the mixer.

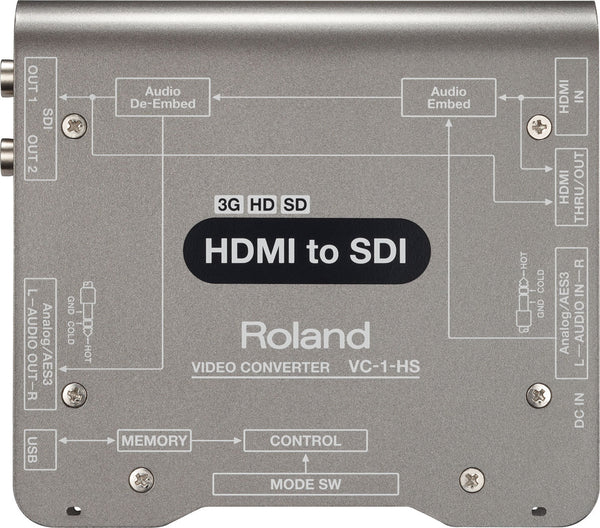

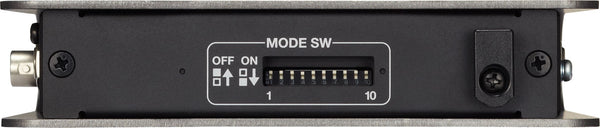

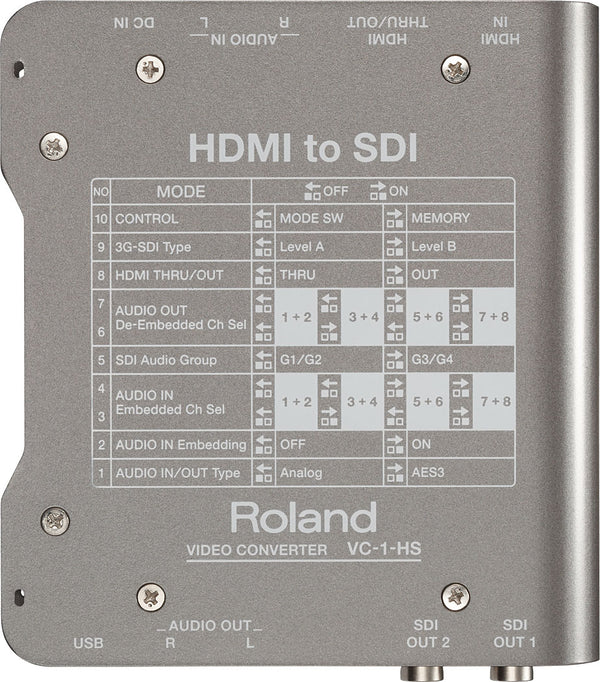

HDMI to SDI Conversion Lossless image conversion 3G ( Level A&B) /HD/ SD SDI HDCP support Selectable Channel for Embedded/De-Embedded Audio
*Up/Down/Cross, Frame rate, I/P, and Aspect ratio conversion are not supported.

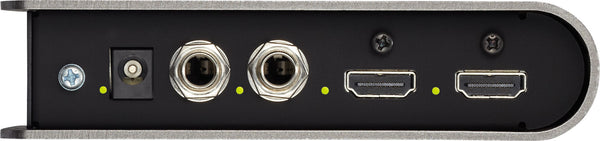

Input HDMI: Type A (19 pins ) x 1 Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair (L/R) Digital Audio Connector: 1/4" TRS phone type ( balanced ) x 1 ( Combined use with Analog Audio R ch Connector ) Processing: Audio embedding Audio de-embedding

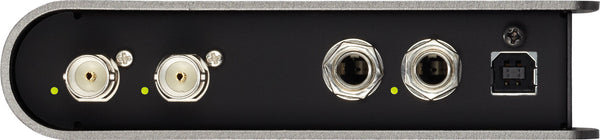

Output SDI Connector: BNC type x 2 HDMI Connector: Type A (19 pins ) x 1 (Thru/Out ) Analog Audio Connector: 1/4" TRS phone type ( balanced ) x 1 pair (L/R) Digital Audio Connector: 1/4" TRS phone type ( balanced) x 1 ( Combined use with Analog Audio R ch Connector )
Input / Output Format SDI Input Signal Standards: SMPTE 424M(SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C SDI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M ), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 ) Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C) HDMI Input Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E) HDMI Input Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch SDI Output Signal Standards: SMPTE 424M (SMPTE 425M-AB), SMPTE 292M, SMPTE 259M-C SDI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i (Conforms to SMPTE 274M ), 1280x720/60p/59.94p/50p/30p/29.97p/25p (Conforms to SMPTE 296M), 720x487/59.94i, 720x576/50i (Conforms to ITU-R BT.601-5 ) SDI Output Audio Format: Linear PCM, 24 bits, 48 kHz, 16 ch (Conforms to SMPTE 299M, SMPTE 272M-C) HDMI Output Video Format: 1920x1080/60p/59.94p/50p/30p/29.97p/25p/24p/23.98p/60i/59.94i/50i, 1280x720/60p/59.94p/50p/30p/29.97p/25p, 720x480/59.94i, 720x576/50i (Conforms to CEA-861-E) HDMI Output Audio Format: Linear PCM, 24 bit, 48 kHz, 8 ch
Audio Input / Output Analog Audio Input Level: +4dBu Analog Audio Maximum Input Level: +24dBu Analog Audio Input Impedance: 110 ohms Analog Audio Output Level: +4dBu Analog Audio Output Impedance: 600 ohms Digital Audio Output Signal Format: AES3, 16/24 bits, 32/48 kHz, 2 ch Digital Audio Output Impedance: 110 ohms
Others USB Connector: USB Type B (Hi-Speed USB) x 1 Power Supply: DC 9V Power Consumption: 8W Operation Temperature: +0 to + 40 degrees Celsius Accessories: AC adaptor, Power Cord, Rubber Foot x 4, Owner's Manual
Size and Weight Width: 150 mm, 5-15/16 inches Depth: 130 mm, 5-1/8 inches Height: 30 mm, 1-3/16 inches Weight: 500 g, 1 lbs. 2 oz.
The VC-1 Video Converter series provides uncompromising picture quality by maintaining the video characteristics of the original signal with rich-blacks and super-whites. There are no interlacing artifacts or other conversion or signal errors sometimes found with other video converters. The VC-1 series also features an on-board re-clocker to compensate for attenuation of SDI signals carried over long distances. The VC-1 series also supports both level A and B 3G-SDI, letting you connect a variety of higher quality SDI sources.
The VC-1 series is HDCP compliant allowing you to convert or pass-through HDCP signals with the exception of any SDI output. The VC-1-DL additionally enables the HDCP signal to be delayed. Selectable audio embedding and de-embedding lets you route different audio sources to or from video devices. Digital AES/EBU input and output signals are supporting ensuring high-quality audio signals can be maintained through the signal flow.
Increasingly HDMI video cameras are being used for live production. The VC-1-HS converts, extends and embeds audio from HDMI to SDI. This converter is especially complimentary to the Roland V-1600HD and V-800HD multi-format video mixers when you want to use SDI signals for camera inputs on the mixer.
*Up/Down/Cross, Frame rate, I/P, and Aspect ratio conversion are not supported.
