DATAVIDEO SE-1200MU 6 Input Rackmount HD Switcher (HD-SDIx4 + HDMIx2)


FREE Ground Shipping


Whether you are filming a seminar or conference, conducting a live outside broadcast or shooting inside a production studio, the Datavideo SE-1200MU HD video switcher enables you to switch seamlessly between video sources and blend high-quality digital content on the fly.

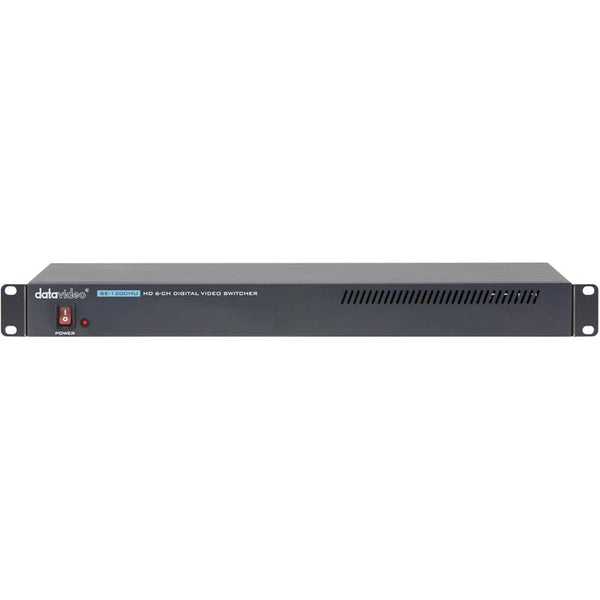

SE-1200MU a small, portable computer controlled 1RU rack mountable switcher. It features a 6-Channel HD video input that is incredibly reliable, unlike PC-based systems that are prone to crashing mid production.

SE-1200MU streams out multi-view screen video in real-time to a control PC for monitoring and control remotely. It is designed to be fully controlled from any Windows Laptop / PC with the included SE-1200 software control panel, or the RMC-260 control panel.

SE-1200MU includes four HD-SDI and two HDMI inputs and an internal frame synchronizer so you can use sources without gen-lock such as consumer HDMI cameras or even computers for live PowerPointâ„¢ presentations.

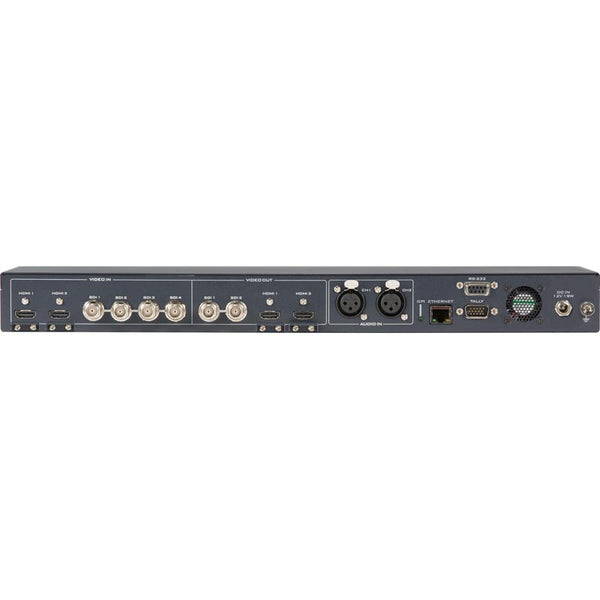

Two assignable HD-SDI and two HDMI outputs for connecting an HD recorder, monitor and a streaming encoder, plus two Balanced XLR audio inputs for connecting an external audio mixers. Other features include chromakey, lumakey, DSK, PIP, still stores, audio delay, tally and RJ-45/RS-232 remote control interface.

  • 6 video inputs ( HD-SDI x 4 + HDMI x 2)
    - Frame Sync on each input
  • Flexible Mix/Effects Processor with
    - 2 Upstream Keyers, supporting Chroma Key & Linear/Luma Key
    - 2 DSK, supporting Linear & Luma Key Modes
    - 1 PIP (assignable to any of the 4 keyers
    - Wipe Generator: 32 Wipe Patterns, including Circle & Heart | Borders & Softness Control
    - Wipe, Mix & Cut Transitions
    - Full M/E Preview function
  • Any Input (1-6) can be used as a Frame store
  • Assignable Outputs
    Each HD-SDI output can be switched in the Menu as:
    - PROGRAM (w/ DSK)
    - Clean PROGRAM (w/o DSK)
    - Clean PREVIEW (w/o DSK)
    - Input 1-6
  • XPT (Cross Point Assignment)
  • PC control
  • Control Switcher via USB / Laptop keyboard

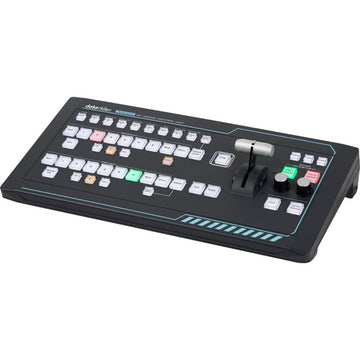

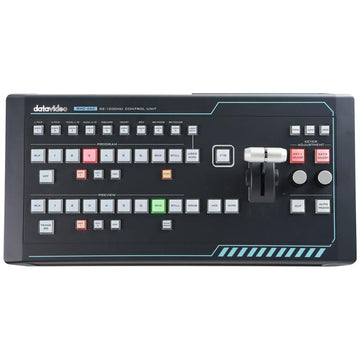

  • RMC-260 optional - SE-1200MU Digital Video Switcher remote controller
  • Remote streaming of Multi view out using built-in Motion JPEG Streaming processor
  • Tally output
  • GPI output

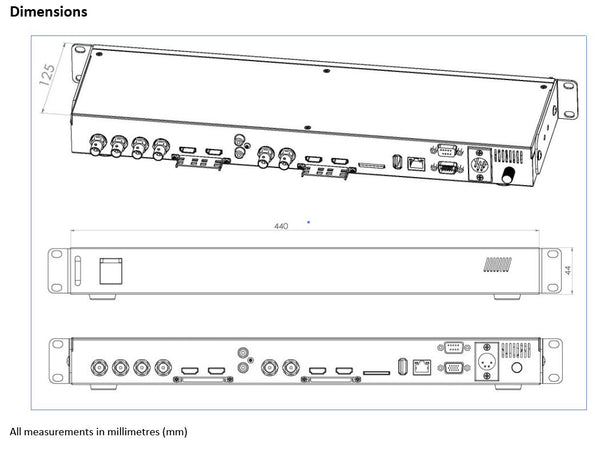

  • 1U rack mount

    Total Video Inputs 2 HDMI + 4 SDI
    Total Outputs 1 HDMI + 2 SDI
    SDI Video Input 4 (1080i / 720p)
    HDMI Video Input 2 HDMI (RGB/YUV)
    1080i / 720p
    SDI Audio Output (PGM) 2CH
    Analog Audio Input 2CH XLR
    Embedded Audio HDMI & SDI
    Internal Frame Synchronizers 6 All Inputs
    PGM Out HDMI / SDI
    Multi-view Out HDMI (720p->720p ; 1080i->1080p)
    SDI (720p->720p ; 1080i->1080i)
    Output can select any of input source PROGRAM (w/ DSK)
    Clean PROGRAM
    PREVIEW (w/o DSK)
    Input 1~4
    Audio Indicator on Multi view Yes (output 2CH)
    Tally Out Yes
    GPI Yes (Level / Pulse Trigger selectable)
    Software Updates Ethernet
    HD Format Support 1080i/50, 1080i/59.94, 1080i/60, 720p/50, 720p/59.94, 720p/60
    SDI Compliance SMPTE 292M (SDI output / PGM out)
    Video Sampling 4:2:2 10-bit
    Color Precision 4:2:2 10-bit
    Color Space 4:2:2 YUV
    HDMI Input Resolutions for Computers 1280x720 59.94Hz 50Hz (720p)
    1920x1080 59.94Hz 50Hz (1080p & 1080i)
    Colorspace Conversion Hardware based real time
    Processing Delay Less than 1 frame
    Audio Mixer selectable audio follow video,
    master gain control
    Downstream Keyers 1
    Linear/Luma Keyers 3 (M/E Keyer, PIP, DSK)
    Chroma Keyers 2 (M/E Keyer & PIP)
    Pattern Generators Colour Bar
    PIP 1
    XPT Yes
    Frame store Total 24 stills on internal SD card;
    One dedicated still buffer, one dedicated freeze buffer;
    Also, any input can be used as Frame store;
    3 Still frames stored in local frame buffers for instant access
    Control Panel Compatibility Use PC via Ethernet; Control panel
    Input Voltage 12V
    Power consumption 23W
    Control Protocol DVIP
    Multi View Monitoring
    Number of Windows 2 (PGM, PVW)
    +6 (Inputs 1-4, Stills & Freeze)
    +2 Output windows (SDI1, SDI2)
    Routable Windows Yes (Follow XPT)
    Tally Yes
    Windows Source Labels Yes
