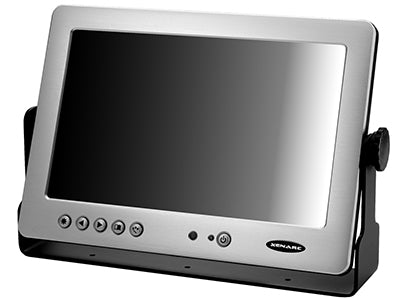

Xenarc Technologies Corp. was one of the first display manufacturers to introduce a 10.1" LED LCD screen with Touchscreen and now we have further improved this popular model by incorporating an HDMI input as well as the latest LED backlight technology. In addition, Solid Capacitors are used in place of Electrolytic Capacitors though out the unit to further improve the stability and durability especially in extreme temperature conditions.
This ruggedized and versatile product incorporates the innovation of our VGA 10.1" model along with a 5-wire resistive Touch-Screen panel and now HDMI input as well. Use the convenient touch-screen as your input device, and control your mouse cursor or the mini on screen keyboard that comes with your operating system. The touch screen utilizes the USB port as the interface. You can connect several of our touchscreen displays to your computer and the touchscreens would work simultaneously through the multi-monitor support.
The brushed, anodized aluminum face plate gives the monitor a futuristic yet elegant look. The entire enclosure is constructed with aluminum, making the unit both strong and light weight and the thin profile (only 1.19") makes the display very space saving.
FEATURESFor In-Car Computing, PC, Server, GPS, and various HDMI, DVI, and VGA Use 5-wire resistive Touch Screen (USB) Multi-Monitor Touchscreen Support HDMI Input x1, VGA Input (15 pin D-SUB) x 1 & Video Input x 2 DVI Input through included DVI to HDMI adaptor Supports HDCP Audio Input x 3 / Built-in Speakers NTSC / PAL Multi-System 16x9 Aspect Ratio Upgraded High-Brightness LED Backlight Ultra High Resolution - 1024 x 600 Native Solid Capacitors for improved durability Automatic backlight level adjustment through built-in ambient light sensor High Performance Image and Video Signal Processor AISS - Advanced Image-Scaling and Shaping Last Input memory Last Power setting memory IR Remote Control Auto power-on upon signal detection Automatic display adjustment On Screen Display Control Mirror Image Flip Vertical Image Flip Function to disable front button(s) Function to disable On Screen Text AV2 Auto Switching for backup camera Desktop Stand: 360° Adjustment U-Shape mounting bracket VESA 75mm mounting holes 26-Pin heavy-duty connector Anti Glare Coating Brushed, anodized aluminum face plate Aluminum Casing Supports 10V DC ~ 30V DC "E" Mark Certified for Automotive use
SPECIFICATIONS Screen Size: Diagonal 10.1" (16:9) Physical Resolution: 1024 (H) x 600 (V) WXGA Supported Resolution: 640 x 480 ~ 1920 x 1080 Dot Resolution: 3072 x 600 = 1,152,000 (dots) Brightness: 500 cd/m² Contrast Ratio: 500:1 Viewing Angle: 140° Horizontal, 110° Vertical Response Time (Tr/Tf): 5/20ms (Typ.) Touch Screen Interface: USB port Operating Voltage Range: DC 10V ~ 30V Power Supply: DC 12V Power Consumption: = 20W Operating Temperature: 32°F ~ 122°F Storage Temperature: -4°F ~ 140°F Dimension (mm): 265W x 186H x 33.2D Weight (lb): 3.3 FCC, CE, E13 Certification ROHS Compliant 24 Month Warranty 30 days No dead Pixel Guarantee
This ruggedized and versatile product incorporates the innovation of our VGA 10.1" model along with a 5-wire resistive Touch-Screen panel and now HDMI input as well. Use the convenient touch-screen as your input device, and control your mouse cursor or the mini on screen keyboard that comes with your operating system. The touch screen utilizes the USB port as the interface. You can connect several of our touchscreen displays to your computer and the touchscreens would work simultaneously through the multi-monitor support.
The brushed, anodized aluminum face plate gives the monitor a futuristic yet elegant look. The entire enclosure is constructed with aluminum, making the unit both strong and light weight and the thin profile (only 1.19") makes the display very space saving.
