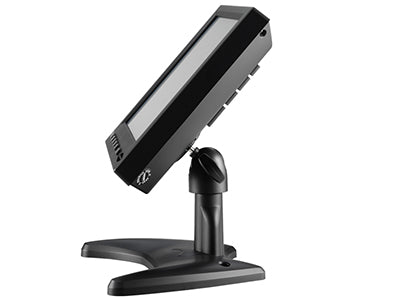

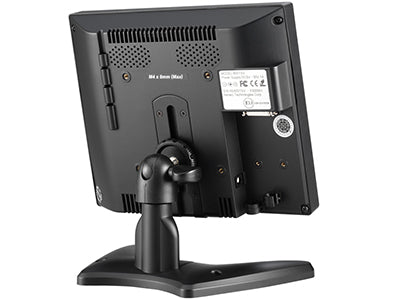

Xenarc Technologies Corp. followed up the success of the 800 series line of displays with the introduction of the 805 series, an 8" LED LCD Touchscreen with VGA input utilizing the latest LED Backlight technology. For In-Car Computing, PC, Server, GPS, POS, and various VGA Use5-wire resistive Touch Screen (USB)Multi-Monitor Touchscreen SupportVGA Input (15 pin D-SUB) x 1 & Video Input x 2Audio Input x 3 / Built-in SpeakerNTSC / PAL Multi-System4:3 Aspect RatioHigh Resolution DisplayHigh Brightness LED BacklightAdjustable backlight level for night-time useRealtek High Performance Image and Video Signal ProcessorAISS - Advanced Image-Scaling and ShapingFactory Mode to disable front buttonsFactory Mode to disable On Screen TextLast Input memoryLast Power setting memoryIR Remote ControlAuto power-on upon signal detectionAutomatic display adjustmentOn Screen Display ControlMirror Image FlipVertical Image FlipAV2 Auto Switching for backup cameraDesktop Stand: -5Â° ~ 70Â° Tilt AdjustmentVESA 75mm mounting holes26-Pin heavy-duty connector with connector lockingAnti Glare CoatingSupports 9V DC ~ 30V DC"E" Mark Certified for Automotive use
This affordable, yet versatile product incorporates the innovation of our VGA 8" model along with a 5-wire resistive Touch-Screen panel. Use the convenient touch-screen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system. The touch screen utilizes the USB port as the interface. You can connect several of our touchscreen displays to your computer and the touchscreens would work simultaneously through the multi-monitor support.
Why do our products outlast others at extreme environments? Why do our products have wider temperature range and wider voltage input range?It is because our mission is to offer our customers the best. By utilizing high grade components, this monitor is perfect for industrial, in-car computing applications or any other applications where a small, durable display is required.
SPECIFICATIONSScreen Size: Diagonal 8" (4:3)Physical Resolution: 800 (H) x 600 (V) SVGASupported Resolution: 640 x 480 ~ 1600 x 1200Dot Resolution: 2400 x 600 = 1,440,000 (dots)LCD Brightness: 400 cd/mÂ²Contrast Ratio: 500:1Viewing Angle: 140Â° Horizontal, 120Â° VerticalResponse Time (Tr/Tf): 10/15ms (Typ.)Touch Screen Interface: USB portOperating Voltage Range: DC 9V ~ 30VPower Supply: DC 12VPower Consumption: < 14WOperating Temperature: -4Â°F ~ 158Â°FStorage Temperature: -22Â°F ~ 176Â°FDimension (mm): 200W x 163H x 36.5DWeight (lb): 1.81FCC, CE, E13 Certification24 Month Warranty30 days No dead Pixel Guarantee
