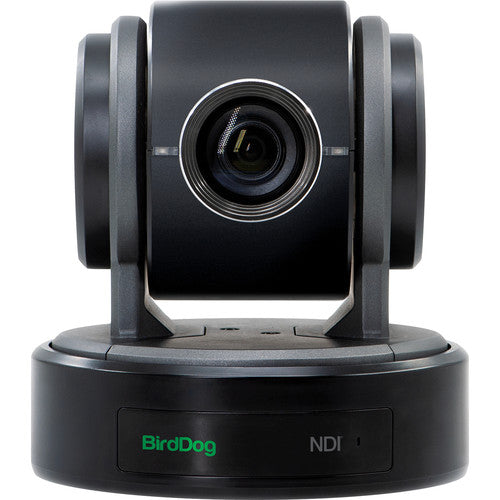

The Eyes BDP100B is BirdDog's entry-level Full NDI indoor PTZ camera based on their custom NDI silicon chip. The P100 captures up to 1080p60 resolution and offers 10x optical zoom, ideal for small to mid-size meeting rooms and environments. The camera features simultaneous 3G-SDI and NDI outputs, allowing you to integrate into an NDI workflow and/or use legacy SDI equipment.

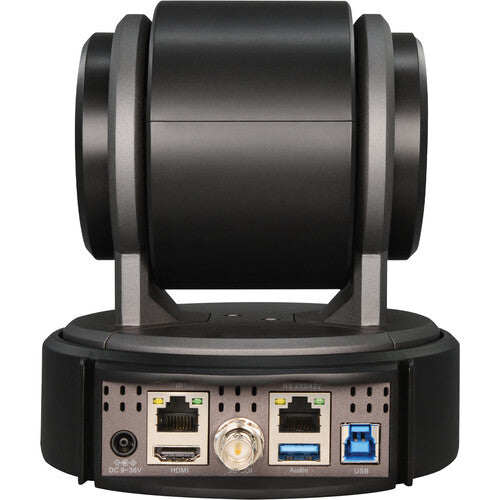

NDI is accessible via an Ethernet port provided on an included breakout cable. The breakout cable connects to an extension port on the rear of the camera and also offers a composite output, 3.5mm audio input/output jacks, and RS-232/422/485 control ports. The audio connectors allow the P100 to work with the BirdDog Comms NDI audio intercom platform. The BirdDog Comms Lite version of the software for Windows is included and it supports up to four BirdDog devices, and you can upgrade to the complete Comms Pro version at any later time. The camera is also compatible with the optional BirdDog Central software, which helps you decode NDI back to SDI (or HDMI). Also, the optional BirdDog PTZ Keyboard can be used over NDI or over RS-422/RS-232 in SDI mode.
As opposed to other types of NDI, such as NDI|HX, which is a compressed variant that reaches 12 Mb/s, the P100 features the visually lossless full NDI variable bit-rate iFrame codec that reaches up to 140 Mb/s at 1080p60.
Triple output. NDI®, SDI and HDMI.
With NDI®, SDI, and HDMI simultaneous outputs the P100 is ready to go live with full NDI® today or can be use as a traditional SDI/HDMI camera. You can rest easy in the knowledge that P100 has you covered for all workflow situations.
USB Connection. The Ultimate PTZ Webcam.
P100 can connect via USB to use as a webcam. Perfect for boardrooms, huddle rooms or anywhere you need better picture quality than your inbuilt webcam. P100 works seamlessly with Zoom, Teams, Hangouts, Chime, Messenger, and even works with Skype if that’s still your bag.
1 / 2.86 inch CMOS 2.2MP
HORIZONTAL ANGLE OF VIEW
60.9° (W) – 6.43° (T)
F1.6 (W) – F3.0 (T)
Color: 0.5 lux
1/1 – 1/30000s
Auto, Push, Manual
Auto, Indoor, Outdoor, Manual, OPW, ATW
Auto, Manual, Shutter/Iris Priority
Horizontal : ±350º continuous pan (Zoom Adaptive Speed Range: 0.5°〜100°/S )
Vertical: +90° to -30° (Zoom Adaptive Speed Range: 0.05°〜72°/S)
128 (Speed adjustable: Up to 150°/s)
0 – 5 Level adjustable
-10 – +50 (°C)
1080p 60, 59.94, 50, 29.97, 25
1080i 60, 59.94, 50
720p 60, 59.94, 50, 29.97, 25
3.5mm Audio In (Stereo)
3.5mm Audio Out (Stereo)
IP PTZ CONTROL
NDI Control (auto configuring)
SERIAL PTZ CONTROL
1x RJ45: RS232/RS422
SERIAL CONTROL PROTOCOL
VISCA / Pelco D
POWER & DIMENSIONS
12v DC, PoE +(IEEE 802.3at)
Full NDI – i-frame high quality low latency NDI for production
NDI – Discovery, configuration and control
WEB CONTROL INTERFACE
Full control via Web/Mobile UI including Scene presets
