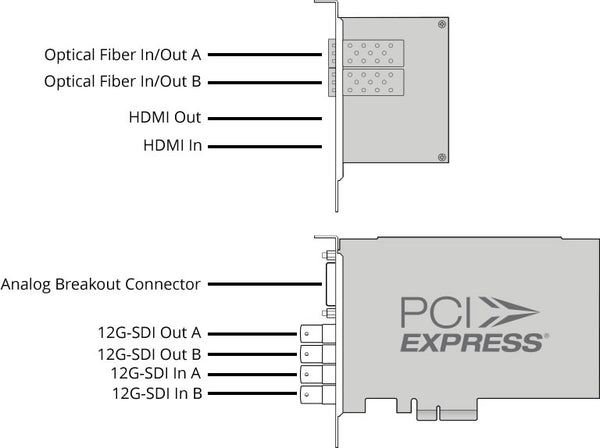

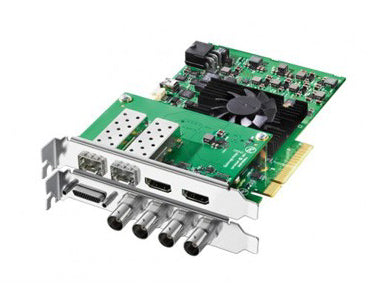

The ultimate digital cinema capture card featuring two full frame DCI 4K inputs and outputs via 12G-SDI! You get dual link multi rate 12G-SDI connections that work with SD, HD and Ultra HD even in Ultra HD 60p, as well as full frame DCI 4K at 4096 x 2160 resolution up to 60p! Capture 10-bit YUV or full color bandwidth 12-bit RGB. Includes AES/EBU audio, up, down and cross conversion, plus built in 3D stereoscopic output at full bandwidth 4:4:4:4 RGB! No other capture and playback card supports more video formats and video connections!SDI Video Input2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.SDI Video Output2 x 12Gb/s SD/HD/2K/4K. Supports single/dual link 4:2:2/4:4:4. 2D/3D switchable.Analog Video Input1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.Analog Video Output1 x Component YUV on 3 BNCs switchable to S-Video and Composite. Component supports HD and SD.Analog Audio Input2 Channels of professional balanced analog audio via XLR connectors.Analog Audio Output2 Channels of professional balanced analog audio via XLR connectors.AES/EBU Audio Input2 Channels unbalanced with sample rate converter.AES/EBU Audio Output2 Channels unbalanced.SDI Audio Input16 Channels embedded in SD/HD/2K/4K.SDI Audio Output16 Channels embedded in SD/HD/2K/4K.HDMI Video InputHDMI type A connector with support for 2160p60.HDMI Video OutputHDMI type A connector with support for 2160p60.HDMI Audio Input8 Channels embedded in SD/HD/4K.HDMI Audio Output8 Channels embedded in SD/HD/4K.Sync InputBlack burst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD format.Device ControlSonyÃ¢â€žÂ¢ compatible RS422 deck control port. Serial ports TxRx direction reversible under software control.Computer InterfacePCI Express 8 lane Gen 2, compatible with 8 and 16 lane PCIe with HDMI or SDI mezzanine card.
CODECSSupports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.
SOFTWARESoftware IncludedMedia Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video and Blackmagic driver on Mac OS X. Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video and Blackmagic driver on Windows 7 and Windows 8. Media Express, Blackmagic Desktop Video and Blackmagic driver on Linux.Internal Software UpgradeFirmware built into software driver. Loaded at system start or via updater software.Physical InstallationPCI Express 8 lane generation 2, compatible with 8 and 16 lane PCI Express slots on Mac OS X, Windows and Linux. Mac OS X systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
SOFTWARE APPLICATIONSDaVinci ResolveFusionFinal Cut Pro XPremiere Pro CCAvid Media ComposerAfter Effects CCAvid Pro ToolsSteinberg CubaseAutodesk SmokePhotoshop CC
Nuke, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Live Encoder, Flash Media Live Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidblaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster.
VIDEO STANDARDSSD Format Support
525/29.97 NTSC, 625/25 PAL.
HD Format Support
1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080PsF25, 1920 x 1080PsF29.97, 1920 x 1080PsF30, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
2K Format Support
2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25, 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25.
4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 3840 x 2160p50, 3840 x 2160p59.94, 3840 x 2160p60, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25.
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 425M level A, SMPTE 425M level B, SMPTE 435, ITU-R BT.656 and ITU-R BT.601.
SDI Metadata Support
VANC capture and playback using up to 3 lines of video in file. HD RP188. Closed captioning.
Television standard sample rate of 48 kHz at 24-bit.
SDI Video Sampling
4:2:2, 4:4:4 and 4:4:4:4.
SDI Color Precision
8, 10-bit YUV 4:2:2 and 8, 10, 12-bit RGB 4:4:4 in HD, 2K and 4K.
REC 601, REC 709
HDMI 2.0 supports Deep Color and automatically configures to connected display.
Multiple Rate Support
HDMI and SDI video connections are switchable between SD/HD/2K and 4K. Component analog video connections are switchable between SD and HD.
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
PROCESSINGUltra HD Down Conversion
Built in, high quality hardware down converter outputs Ultra HD to HD or HD to SD downconverted signal on SDI B and SD on Composite and S-Video. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
HD Up Conversion
Built in, high quality hardware up conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 zoom and 16:9 zoom.
HD Cross Conversion
Built-in, high quality hardware cross conversion from 720HD to 1080HD, 1080HD to 720HD on playback.
Real Time Effects
DaVinci Resolve, Final Cut Pro X internal effects. Premiere Pro CC Mercury Playback Engine effects. Avid Media Composer internal effects.
Hardware based real time on output.
Dual stream and frame packed capture and playback.
OPERATING SYSTEMSMac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.Windows 7 64-bit or Windows 8 64-bit.Linux
ENVIRONMENTAL SPECFICATIONSOperating Temperature
5Ã‚Â° to 40Ã‚Â° C (41Ã‚Â° to 104Ã‚Â° F)
-20Ã‚Â° to 45Ã‚Â° C (-4Ã‚Â° to 113Ã‚Â° F)
0% to 90% non-condensing
PHYSICAL SPECIFICATIONSLength: 6.69 inWeight: 0.66 lbs
WHAT'S INCLUDEDDeckLink 4K Extreme 12GHDMI mezzanine cardSD card containing Blackmagic software driverSD card containing DaVinci Resolve LiteBreakout cable for analog and RS-422 control.External power cable
WARRANTY3 Year Limited Manufacturer's Warranty.
