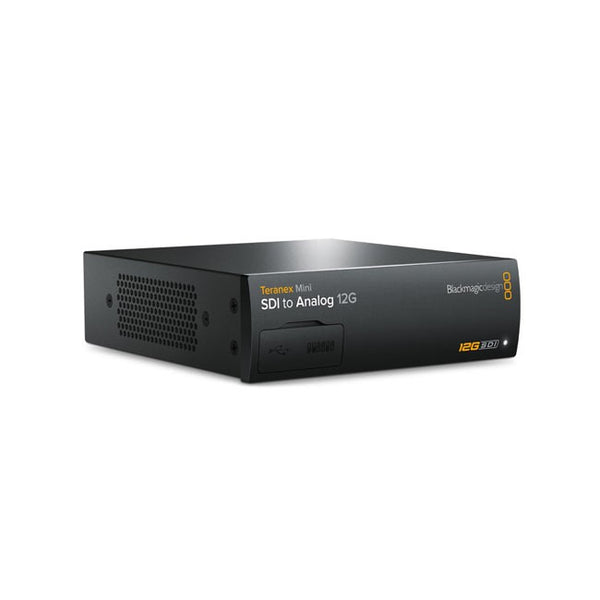

BLACKMAGIC CONVNTRM/BA/SDIAN Teranex Mini SDI to Analog 12G Converter

BLACKMAGIC

FREE Ground Shipping

OUT OF STOCK

Convert from 12G-SDI to Analog. Use SD, HD, 6G and 12G-SDI rates and convert to analog video output. Built in down converter lets you connect Ultra HD sources to component video equipment in SD or HD. Allows you to connect analog equipment including Betacam SP, VHS, and video monitors.

CONNECTIONS

SDI Video Input
1 x 12G-SDI SD/HD/2K/4K auto switching.

SDI Video Output
1 x 12G-SDI loop output.

Analog Audio Output
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode output.

AES/EBU Audio Output
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.

Embedded Audio Support
16 channels.

Multi Rate Support
Automatic switching between SD/HD/2K and 4K.

Updates and Configuration
USB or Ethernet.

Re-Clocking
Yes

STANDARDS

SD Format Support
525i29.97 NTSC, 625i25 PAL

HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K Format Support
2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

4K Format Support
4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p

SDI Compliance
SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10, ITU-R BT.656 and ITU-R BT.601

SDI Video Rates
SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI.

SDI Video Sampling
4:2:2 and 4:4:4

SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.

SDI Color Precision
4:2:2 and 4:4:4

SDI Color Space
YUV

SDI Auto Switching
Automatically detects SD, HD or 12G-SDI.

Analog Format Support
525i29.97 NTSC, 625i25 PAL
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

Analog Color Space
REC 601, REC 709

Analog Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

Format Conversion
HD down conversion

SOFTWARE

Software Control
Mac OS Xâ„¢ and Windowsâ„¢ software upgrade via USB and Ethernet.

Internal Software Upgrade
Via included updater application.

OPERATING SYSTEMS

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.

SETTINGS CONTROL

Basic Settings Control
Mini Switches, USB and Ethernet via free software utility

Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons

POWER REQUIREMENTS

Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.

Power Over Ethernet
Can be powered via 48V DC using PoE+ (power over ethernet).

Power Consumption
16 Watts

Operational Voltage Range
90 - 240V AC

PHYSICAL SPECIFICATIONS

5.51"W x 1.75"H x 6.69"D
1.46 lbs

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature
0°to 40°C (32° to 104°F)

Storage Temperature
-20°to 60°C (-4° to 140°F)

Relative Humidity
0% to 90% non-condensing

WHAT'S INCLUDED

Teranex Mini - SDI to Analog 12G
SD card with software and manual
WARRANTY

3 year Limited Manufacturer’s Warranty.
