Advanced 40 x 40 multi format SD, HD and Ultra HD SDI router with built in video monitoring and spin knob control for visual routing so that you can quickly route your video by looking at it! Smart Videohub 40x40 fits a massive 80 multi rate 6G-SDI connections in a compact two rack unit size!
CONNECTIONSSDI Video Input
40 x 10-bit SD-SDI, HD-SDI and 6G-SDI. SDI Video Output
40 x 10-bit SD-SDI, HD-SDI and 6G-SDI. Reference Input
Black burst and Tri-level sync for SD, HD and 4K. Reference Output
Reference terminating loop output. Multi Rate Support
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video. Updates
USB or Ethernet. Router Control
40 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet. Router Configuration
Via front panel LCD or RJ45 Ethernet. USB for firmware updates and IP address setting only. RS-422 Router Control
1 x input for controlling router crosspoint switching. Reclocking
On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
STANDARDS SD Format Support
625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC. HD Format Support
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60. 2K Format Support
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25. 4K Format Support
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30 SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601. SDI Video rates
SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI. SDI Video Sampling
4:2:2 and 4:4:4. SDI Audio Sampling
Television standard sample rate of 48kHz and 24-bit. SDI Color Precision
10-bit 4:2:2 and 4:4:4. SDI Color Space
YUV or RGB. SDI Auto Switching
Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard. SDI Metadata Support
Video payload identification ancillary data as per SMPTE 352M.
SOFTWARE Software Control
Router control included free for Windowsâ„¢ and Mac OS Xâ„¢. Internal Software Upgrade
Via included updater application.
OPERATIONS SYSTEMS Mac OS X 10.9 Mavericks, Mac OS X 10.10 Yosemite or later.
Windows 7 or Windows 8.
DISPLAY Built-in 5†LCD for video and menu settings.
PHYSICAL INSTALLATION 2 rack unit size. Less than 6 inches deep.
POWER REQUIREMENTS Power Fail Protection
Crosspoint connections preserved and restored instantly at power on. Power Supply
IEC power cables required. 2 x 90 - 240V AC inputs for full redundancy. Power Consumption
58 Watts

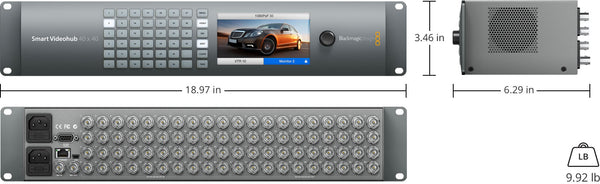

PHYSICAL SPECIFICATIONS 18.97" L x 3.46" H x 6.29" D
9.92 lbs
ENVIRONMENTAL SPECIFICATIONS Operating Temperature
0° to 40° C (32° to 104° F) Storage Temperature
-20° to 45° C (-4° to 113° F) Relative Humidity
0% to 90% non-condensing
WHAT'S INCLUDED Smart Videohub 40x40
Software CD
WARRANTY 12 month Limited Manufacturer's Warranty.
CONNECTIONS
40 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
40 x 10-bit SD-SDI, HD-SDI and 6G-SDI.
Black burst and Tri-level sync for SD, HD and 4K.
Reference terminating loop output.
Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video.
USB or Ethernet.
40 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.
Via front panel LCD or RJ45 Ethernet. USB for firmware updates and IP address setting only.
1 x input for controlling router crosspoint switching.
On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
STANDARDS
625/25 PAL, 525/29.97 NTSC and 525/23.98 NTSC.
720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60.
2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.
3840 x 2160p23.98, 3840 x 2160p24, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p30, 4096 x 2160p23.98, 4096 x 2160p24, 4096 x 2160p25, 4096 x 2160p29.97, 4096 x 2160p30
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601.
SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.
4:2:2 and 4:4:4.
Television standard sample rate of 48kHz and 24-bit.
10-bit 4:2:2 and 4:4:4.
YUV or RGB.
Automatically selects between SD-SDI, HD-SDI, 6G-SDI and DVB-ASI on each input so that each input can be running a different television standard.
Video payload identification ancillary data as per SMPTE 352M.
SOFTWARE
Router control included free for Windowsâ„¢ and Mac OS Xâ„¢.
Via included updater application.
OPERATIONS SYSTEMS
DISPLAY
PHYSICAL INSTALLATION
POWER REQUIREMENTS
Crosspoint connections preserved and restored instantly at power on.
IEC power cables required. 2 x 90 - 240V AC inputs for full redundancy.
58 Watts
PHYSICAL SPECIFICATIONS
ENVIRONMENTAL SPECIFICATIONS
0° to 40° C (32° to 104° F)
-20° to 45° C (-4° to 113° F)
0% to 90% non-condensing
WHAT'S INCLUDED
WARRANTY
