DATAVIDEO HRS-30 HD/SD-SDI Recorder / Monitor

DATAVIDEO

FREE Ground Shipping

ITEM SHIPS DIRECTLY FROM MANUFACTURER. WE WILL NOTIFY YOU IF IT IS NOT AVAILABLE FOR SHIPMENT.

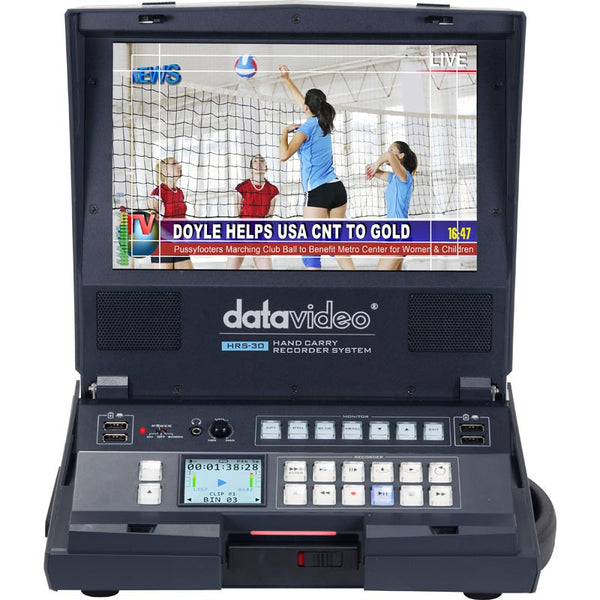

The HRS-30 is a portable recorder with an integrated 10.1" monitor that can be used as a field recorder and also a playback system.

The HRS-30 records from both HD and SD video equipment via HD/SD-SDI and supports 1080i, 720p, 576i, 480i video formats, providing a choice of recording formats in MEPG-II Long-GOP or intra-frame (i-frame) with 4:2:2 colour sampling.

The recorded MXF/OP1A file format is compatible with a wide range of NLE and play out systems.

Recorded files are stored to a removable caddy which is compatible with 2.5" HDD & SSD drives.

RECORDER FEATURES
  • Removable hard drive
  • Support NTFS format, no 2GB/4GB file limitation
  • HD/SD SDI input, output and loop thru with embedded audio
  • HDMI output with embedded audio
  • Video resolutions:
    - 1920x1080 23.97p/24p
    - 1920x1080 50i/59.94i/60i
    - 1280x720 50P/59.94P/60P
    - 720x576i or 720x480i
  • SD mode recording:
    - Selectable 8,15,30 or 50 Mbps Long GOP 4:2:0 or 4:2:2
    - 100/125Mbps i-frame 8-bit 4:2:2
  • Recording file formats: MXF/OP1A, MOV quick time*

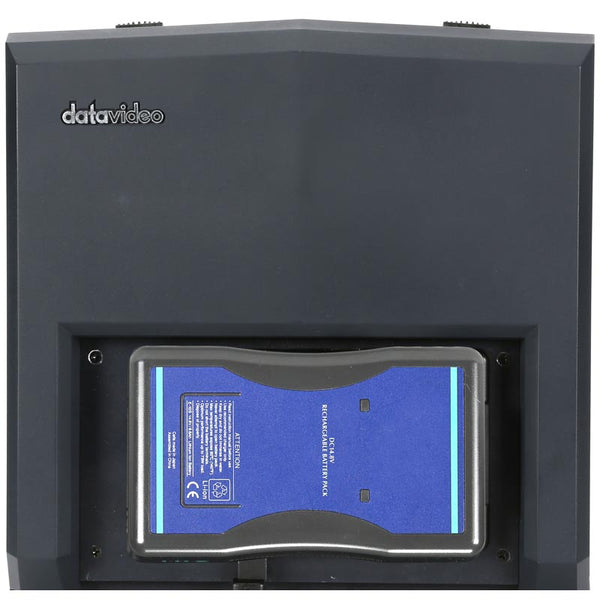

  • V mount Battery and Anton Bauer battery support.
  • Wide view angle colour TFT LCD display for OSD operation
  • 10.1" 16:9 monitor resolution : 1280 x 800 dots.
  • 10.1" Dot pitch : 0.0565(W)× 0.1695(H)mm

    10.1" MONITOR FEATURES
  • Internal colour bar
  • Blue only
  • Audio indicator
  • Safe area
  • Time code display
  • Colour temperature adjustment
  • NTSC/PAL auto switching

    IN THE BOX
  • 1x HRS-30 Unit
  • 1x AD Switch 12V
  • 1x Hard Drive Fixed Module
  • 4x Screw
  • 1x USB Light
  • 1x SATA to USB Cable
  • 1x 2.5” HDD Bag
