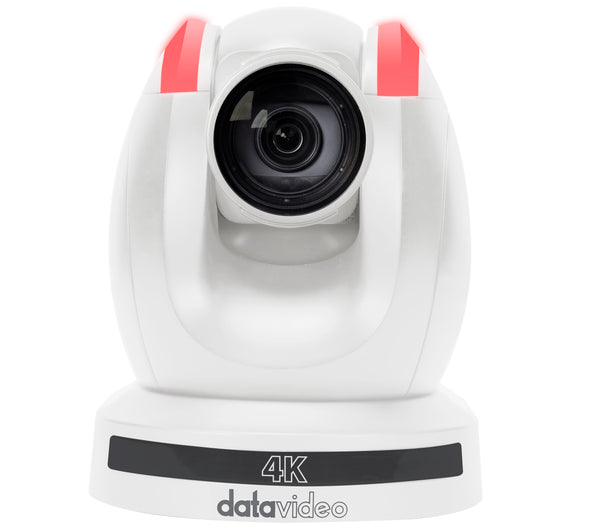

DATAVIDEO PTC-280W 4K PTZ Camera (White)

DATAVIDEO

FREE Ground Shipping

ITEM SHIPS DIRECTLY FROM MANUFACTURER. WE WILL NOTIFY YOU IF IT IS NOT AVAILABLE FOR SHIPMENT.

PTC-280 4K PTZ Camera
Video Output Resolution

HDMI: 3840 x 2160p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 50, 59.94, 60 fps

SDI: 1920 x 1080p at 25, 29.97, 30, 50, 59.94, 60 fps
1920 x 1080i at 50, 59.94, 60 fps
1280 x 720p at 50, 59.94, 60 fps

Image Sensor

1/2.5" CMOS

Effective Pixels (approx.)

8.51Mega Pixels

S/N Ratio

≥55dB

Min. Illumination

0.5 Lux @ (F1.8, AGC ON)

Zoom Ratio

12x Optical, 16x Digital Zoom

Gamma Control

Off / Normal

Iris Control

Auto / Manual

Digital Noise Reductions

2D/3D Noise Reductions

On-Screen Display (OSD)

English/Simplified Chinese/Traditional Chinese

White Balance

Auto, Indoor, Outdoor, One Push, Manual

AGC / Gain Control

Yes

Mirror / Flip Image

Yes

Focus Mode

Auto/Manual

Panning/Tilting Range

Pan: 300°
Tilt: +130° to -15°

Panning/Tilting Speed

Pan: 0.876°/s~43°/s
Tilt: 0.693°/s ~21.32°/s

Preset

255

Focal Length

12x, f = 6.7mm ~125mm, F1.58 ~ F3.95

Field of View (Horizontal, Wide)

71°

Image Compensation

Back light compensation

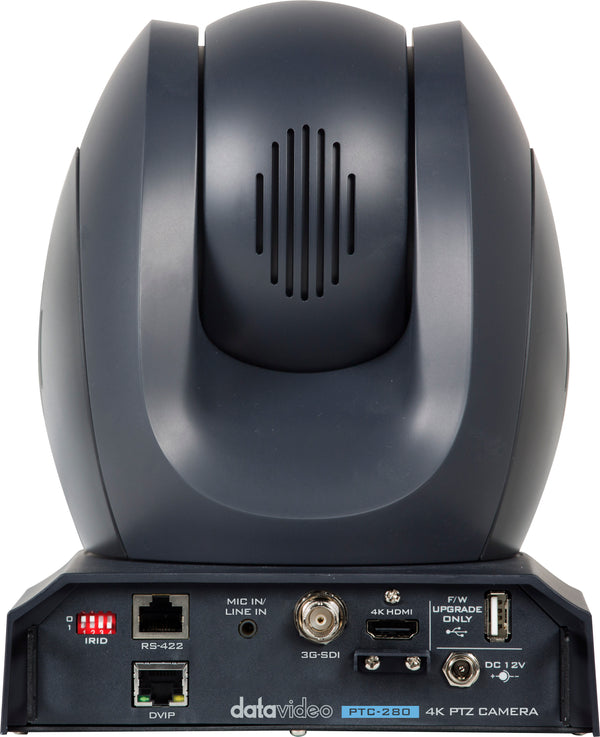

Video Output

HDMI 2.0 x1 ,3G-SDI x1, 10/100/1000M RJ45 x1

Audio Input

3.5 mm x1 (mic in/line in)

Tally LED

Yes

Filter

N/A

Protocol

Pelco-D, Peldo-P, VISCA, VISCA over IP

DHCP, RTSP, RTMP (IP Cam), RTMPS, DVIP

Remote Control Interface

IR , Web UI , RS-422 , DVIP

F/W Update

Via Web UI or USB 2.0

IR Control

Yes

Camera Control Unit

RMC-180,RMC-300A

Video Compression

H.264/H.265/MJPEG

Video Stream

Dual Stream

First Stream Supported Resolution

3840x2160 , 1920x1080 , 1280x720 , 1024x576

960x540 , 640x480 , 640x360

Second Stream Supported Resolution

1280x720 , 1024x576 , 720x576 (50Hz) , 720x480 (60Hz)

720x408 , 640x360 , 480x270 , 320x240

Video Bitrate

32Kbps ~ 50Mbps (Single Stream)

Video Bitrate Mode

VBR, CBR

Encoding Framerate

50Hz: 1-50fps

60Hz: 1-60fps

Audio Compression

AAC

Audio Bitrate

96Kbps, 128Kbps, 256Kbps

Supported Protocols

TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, DHCP, Multicast

Power

DC 12V

Power Consumption

DC 12V

Operating Temperature

0°C ~ 40°C

Storage Temperature

-40°C ~ 60°C

Dimension (mm)

173 (W) x 219 (H) x 189.08 (D)
