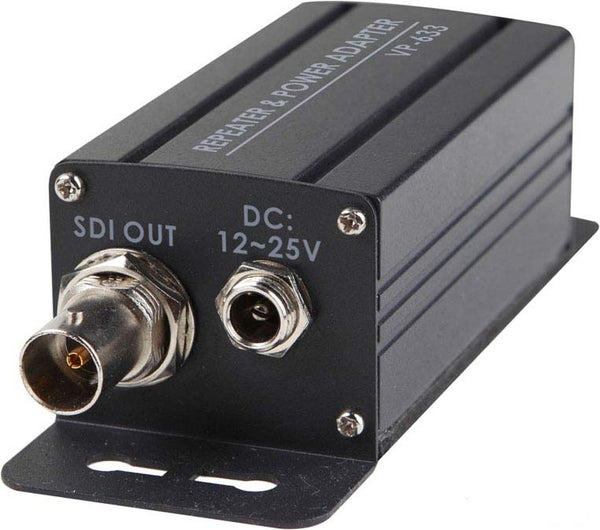

How far is too far with HD-SDI cable? Further than you'd think. Datavideo HD-SDI Repeaters/Cable Extenders make copper a cost effective solution up to at least 600 meters. For less money than fiber, you can join 100m sections of high quality 1.5Gb/s or 3.0Gb/s cable with Datavideo HD-SDI repeaters. Sports shoots — forget about fragile cable! One Day shoots — when you're done, those 100m sections can be rented again or used on other jobs. Datavideo HD-SDI Repeater/Cable Extenders are rugged little gadgets that belong in the kit of anyone who uses video cables.
How they work: HD-SDI is not a bi directional format the same way that Firewire is. So, we put the first and only powered repeater close to the recorder or switcher. This is the only one that requires a 12VDC power supply. Every 100meters from that first repeater we add another repeater until the video source is 100 meters or less from the last repeater.
SPECIFICATIONS

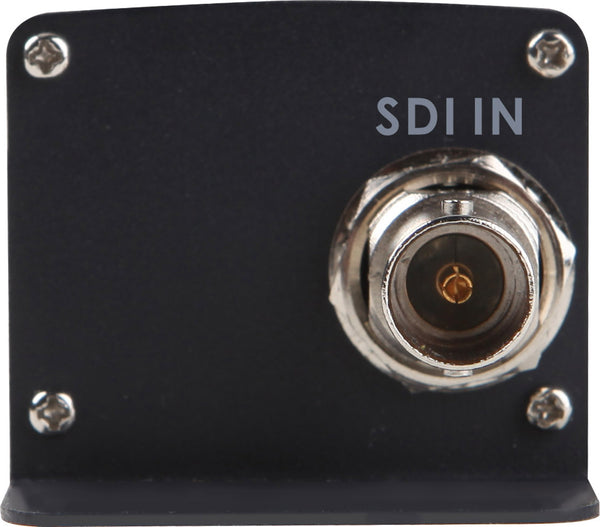

Video ConnectionsInput: 3G(HD)/1.5G(HD)/SD-SDI Output: 3G(HD)/1.5G(HD)/SD-SDI
Audio Connections Embedded audio stays in the output stream
What's in the Box VP-633 or VP-634 Unit Instruction Manual

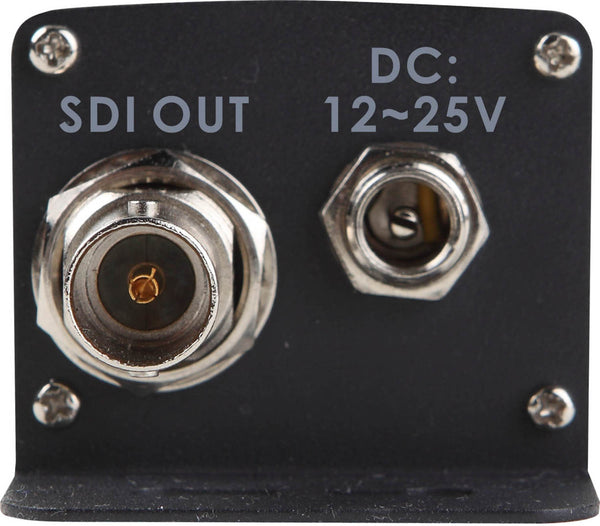

Additional Specs: Supported Formats: 3G(1080p 50/60), HD(1080p 23.98/24/25/30, 1080i 50/60, 720p 50/60), SD(625i PAL, 525i NTSC) Impedance: 75 Ohm DC In: 12-25V (VP-633)
Dimensions: 4.25in. x 1.25in. x 1.375in.
