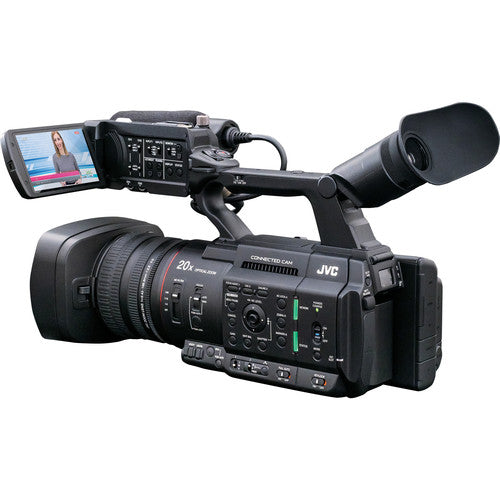

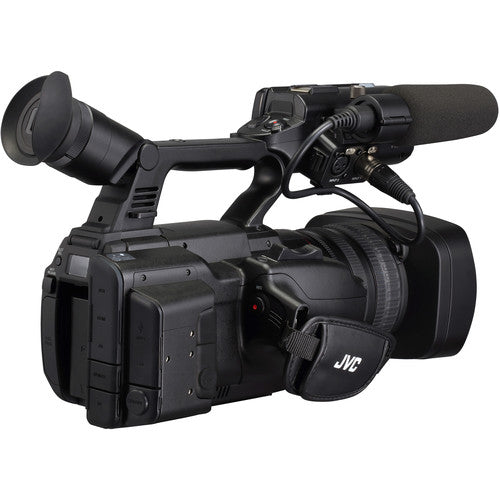

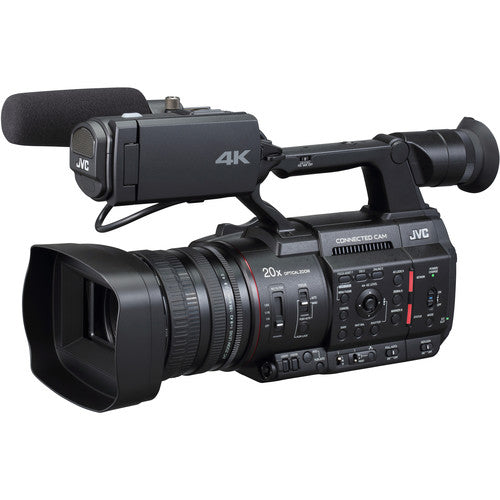

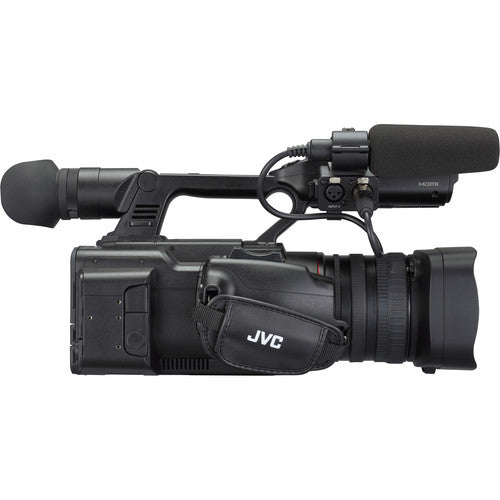

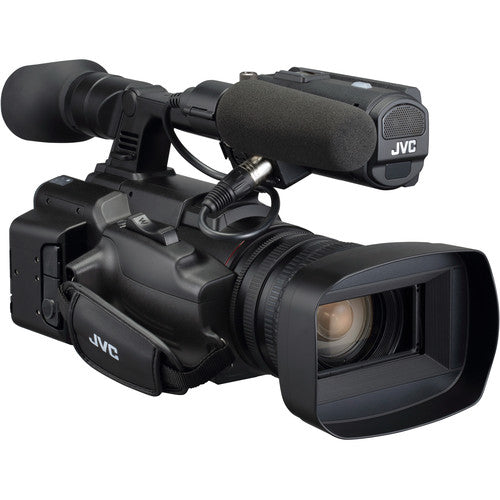

The GY-HC500 is a handheld 4K production camcorder (pictured with optional microphone) that offers uncompromised live and recorded image quality, and connectivity you won't find in any competitor's product. Shoot 4K ultra-HD with HDR and record to SSD or SDHC/SDXC media in a wide variety of formats including ProRes. Ultra-HD ProRes 422 10-bit at 50/60p is possible when recording to SDD media.** And with the latest firmware, you can now record HD (1920 x 1080) in the ProRes 422 and 422HQ formats. The GY-HC500 CONNECTED CAM also features high performance 1080 60p/50p live streaming with advanced Secure Reliable Transport (SRT) QoS, and a full complement of IP remote control and viewing features. Now, with the optional KA-EN200G encoder, streaming is possible with incredibly efficient HEVC/H.265 compression. It's truly the most advanced and versatile camcorder in its price range.
FEATURES
- 10-bit ProRes 422/422HQ/422LT, at 4K UHD resolution and 59.94p/50p/29.97p/25p/23.98p
recording to M.2 SSD** - 4K UHD 29.97p/25p/23.98p 4:2:2 10-bit or 4:2:0 8-bit (150Mbps)
and various HD recording to SDHC/SDXC card* - HDR recording, HLG or J-Log1 (10-bit)
- Backup recording to SSD (v0110)**
- Clip Continuous Record mode
- 1-inch (effective) CMOS sensor with high picture quality
- F11 Sensitivity
- Newly-developed 3-ring 4K lens with 20x zoom (f=28mm-560mm 35mm equivalent)
- 40x lossless dynamic zoom
- 4-inch high resolution LCD monitor
- LCOS Quad VGA viewfinder
- XLR audio connectors
- High performance 1080 60p/50p live streaming
(4K Rec + HD streaming + 4K HDMI output) - Secure Reliable Transport (SRT) QoS for reliable, quality streaming (v0110)
- Facebook Live streaming with secure RTMPS protocol (v0110)
- Low latency and high-quality streaming up to 20Mbps
- LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
- HEVC/H.265 encoding for streaming with 50% reduction in bit rate—or—contribution quality 4:2:2 10-bit streaming at up to 24Mbps (via optonal KA-EN200G)
- Return over IP (Return video and IFB)
- Auto FTP to upload native video clips automatically
* Recording media not included
** SSD media requires optional KA-MC100G media adapter.
|
GENERAL SPECIFICATIONS |
Power |
DC12V (AC adapter), DC7.2V (battery) |
|
Power consumption |
Approx. 24W |
|
|
Dimensions (W x H x D) |
188 mm x 227mm x 437mm (with hood and viewfinder) |
|
|
Weight |
7.9lb (3.6kg with hood and battery, without wireless LAN antenna unit) |
|
|
Moisture protection |
Weather resistant |
|
|
CAMERA |
Image sensor |
1" (effective) CMOS, effective number of pixels: approx 9.35 million |
|
Stabilizer |
Optical image stabilizer |
|
|
Sensitivity |
F11 at 2000lx 89.9% reflectance |
|
|
Lens |
F2.8 (wide) to F4.5 (tele), f=9.43mm to 188.6mm (f=28mm to 560mm (35mm equivalent)) |
|
|
Filter diameter |
82mm |
|
|
Shutter speed |
1/6 to 1/10000 |
|
|
ND filter |
Off, 1/4, 1/16, 1/64 |
|
|
Viewfinder |
0.4" LCOS Quad VGA (1280 x 960), 1280 x 720 at 16:9 |
|
|
LCD monitor |
3.97" LCD /WVGA (800 x 480), 800 x 450 at 16:9 |
|
|
VIDEO/AUDIO RECORDING |
Recording media |
SDHC/SDXC memory card x 2: 4K (150Mbps): UHS-1 U3, 4K (70Mbps)/HD (50Mbps): Class 10, HD (35Mbps): Class 6, |
|
SD: Class 4, High-Speed: UHS-1 U3 |
||
|
SSD (M.2) with optional media case by JVC |
||
|
Video codec |
Apple ProRes 422, MPEG-4 AVC/H.264 (HD/SD), MPEG-2 (HD)* |
|
|
File format |
MOV, MP4 |
|
|
4K UHD 60p/50p |
3840 x 2160, Apple ProRes 422 HQ/Apple ProRes 422/Apple ProRes 422 LT, 10-bit |
|
|
|
|
|
|
4K UHD 30p/25p/24p (H.264) |
3840 x 2160, 4:2:2 10-bit / 4:2:0 8-bit 150Mbps/70Mbps |
|
|
HD (H.264) |
1920 x 1080/1280 x 720, 4:2:2 10-bit / 4:2:0 8-bit mode, etc., 50Mbps – 8Mbps |
|
|
SD (H.264) |
720 x 480 (U model)/720 x 576 (E/EU model), 8Mbps |
|
|
Proxy (H.264) |
960 x 540/480 x 270, 3 – 1.2Mbps |
|
|
Audio recording |
LPCM 2ch, 48kHz/16-bit (MOV), µ-Law 2ch (Proxy), AAC 2ch (MP4) |
|
|
LIVE VIDEO STREAMING |
Protocol |
RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, MPEG2-TS/RTP, RTSP/RTP |
|
Resolution and bit rate |
|
|
|
INTERFACES |
Video output |
|
|
Audio input |
XLRx 2 (MIC, +48V/LINE), ø3.5mm mini jack x 1 |
|
|
Audio output |
AV output (ø3.5mm mini jack x 1) |
|
|
Headphone |
ø3.5mm mini jack x 1 |
|
|
|
|
|
|
Remote |
ø2.5mm mini jack x 1 |
|
|
Time code input/output |
RCA |
|
|
USB |
HOST x 1 (network connection) |
|
|
Ethernet |
RJ-45 x 1 |
|
|
Built-in slot |
Optional SSD media case and for future expansion |
|
|
PROVIDED ACCESSORIES |
Battery (BN-VC296) x 1, AC adapter, power cable, lens hood, wireless LAN antenna x 2* |
|
