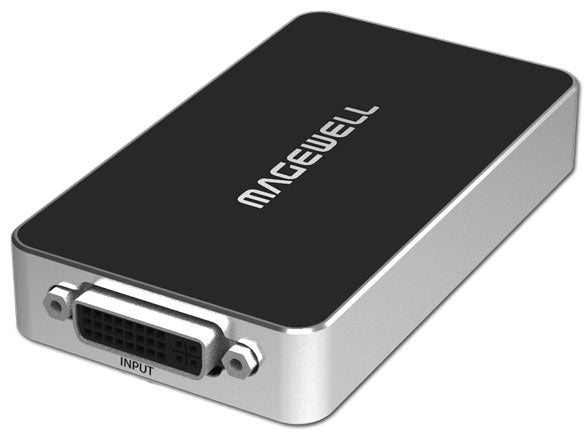

MAGEWELL 32080 USB Capture DVI Plus


FREE Ground Shipping


The most versatile one is the USB Capture DVI Plus, which captures DVI, VGA, HDMI, component and CVBS. It is definitely an ideal tool if you have classic video/gaming equipment such as a DVD player, PS3, Xbox 360, or if you need to capture from medical imaging equipment with various resolutions. Max input resolution is 2048×2160. It can deliver the captured video to the computer at up to 2048×1080 or 1920×1200.

USB Capture HDMI Plus and USB Capture SDI Plus have an input interface as well as a loop through one, which enable monitoring the image while streaming/recording. Different audio input and output functions have also been added to the devices.

The USB capture devices can be used in various industries, for example, game/live events broadcasting and recording, video conferencing, medical imaging, and surveillance. You can use it to capture a video output device or the desktop of the streaming computer.

  • Video Processing by Hardware - The USB Capture Plus Family has video processing functions include up/down conversion, frame rate control, brightness/saturation/contrast/hue adjustment, deinterlacing. The device have powerful FPGAs to process video before transferring data to the computer, causing 0 CPU usage.
  • USB Capture Utility - A software included with the device to enable advanced functions and more control over the device, such as resolution and frame rate setting, color space conversion, vertical flip and mirror, extraction of HDMI information, EDID, cropping and more. Click here for the software.
  • Better Audio - The USB Capture Family adopts ASRC (Asynchronous Sample Rate Converter) technology, which is used in professional USB sound cards.

    The USB Capture Plus Family is compatible with Windows, Linux and Mac OS X.

    The device is compatible with most popular professional third party software for streaming, recording, video conferencing, video stitching, VJ, etc. Check the compatible software.

    The devices use USB 3.0 interface and no external power is needed. They also support USB 2.0 port, but the real-time frame rate will be reduced due to limited bandwidth. Users can also use a USB 3.0-to-Type C cable to connect it via USB Type C interface on the computer.

    Supported OS

    Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
    Linux (Ubuntu 12.04-16.10, CentOS 7)
    OS X 10.9-10.11
    macOS 10.12

    Supported APIs

    – DirectShow
    – Wave API/DirectSound/WASAPI
    – V4L2
    – ALSA
    OS X/macOS
    – QuickTime
    – AV Foundation

    Supported Software

    Microsoft Media Encoder
    Adobe Flash Media Encoder
    Any other DirectShow, V4L2, QuickTime, AV Foundation bbased encoding or streaming software

    Input Interfaces

    Auto scan of video input sources when there is no signal input to the currently selected input source
    Manual selection of video input source
    Auto selection of linked (embedded) audio input source when the video input source changes
    Manual selection of audio input source
    Support for input video resolutions up to 2048×2160

    VGA & Component Specific Features

    12-bit ADC
    Support for RGB & YCbCr (YUV) color formats
    Support for ‘Seperated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY)
    Support for DMT, CEA, CVT, GTF video timings
    Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
    Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss – NOT recommended)
    Auto detection of RGB & YCbCr color formats
    Auto or manual sampling phase adjustment
    Auto horizontal alignment
    Support for customized video timings
    Support for customized video resolutions for CVT/GTF timings

    HDMI Specific Features

    225MHz HDMI receiver
    Adaptive HDMI equalizer support for cables lengths up to 30M
    Support for customized EDID
    Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
    Full colorimetry support
    Support for 8/10/12-bit color depths
    Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
    Support for up to 8-channel IEC60958/IEC61937 audio streams
    Support for extraction of audio formation information & channel status data
    Support for extraction of video timing information
    Support for extraction of 3D format information
    Support for extraction of Sony/Canon DSLR time code
    Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

    Analog Audio Features

    Extract the embedded HDMI audio and output via 3.5mm unbalanced Line out
    Capture analog audio via 3.5 mm unbalanced Line In interface

    Video Capture Format

    Support for capture resolutions up to 2048×1080 or 1920×1200
    Support for output frame rates up to 60fps. (Actual output frame rate can be limited by the USB bandwidth.
    Support for YUY2 4:2:2 8-bit
    More capture format can be set using USB Capture Utility

    Video Processing Features

    Video processing pipelines with 160 Mpixels/s processing bandwidth
    Video cropping
    Video scaling
    Video de-interlacing
    – Wave
    – Blend top & bottom field
    – Top field only
    – Bottom field only
    Video aspect ratio conversion
    – Auto or manual selection of input aspect ratio
    – Auto or manual selection of output aspect ratio
    – Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
    Video color format conversion
    – Auto or manual selection of input color format & quantization range
    – Auto or manual selection of output color format, quantization range & saturation range
    – Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    – Support for Limited or Full quantization range
    – Support for Limited, Full & ‘Extended gamut’ saturation range
    Video frame rate conversion

    Multiple devices on one computer

    Support for connecting multiple USB devices in one system
    Set the device serial number as the device name shown in the system using USB Capture Utility


    USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

    Firmware Upgrade

    Multiple devices in one system can be upgraded simultaneously

    LED Indicator

    Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.

    Form Factor

    101.5mm (L) x 56.8mm (W) x 17mm (H)

    Power Consumption

    5V max current: 600mA
    max power consumption:~3W

    Working Environment

    Operating temperature: 0 to 50 deg C
    Storage temperature: -20 to 70 deg C
    Relative Humidity: 5% to 90% non-condensing
