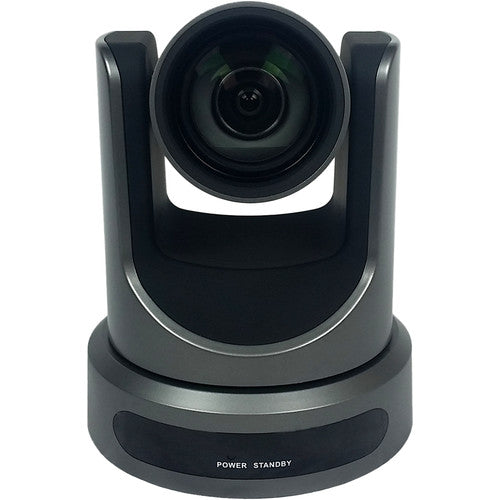

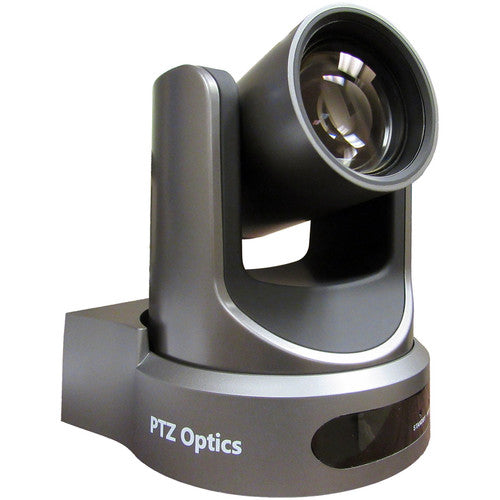

PTZOPTICS PT12X-SDI-GY-G2 12X Zoom 3G-SDI PTZ Camera (Grey)

PTZOPTICS

FREE Ground Shipping

USUALLY IN STOCK. WE WILL NOTIFY YOU IF IT IS NOT AVAILABLE FOR SHIPMENT.

The PTZ Optics 12X-SDI is a 1080p camera with 12X optical zoom for capturing both wide angles and long shots. With support for 3G-SDI, HDMI, and IP streaming (H.264, H.265 & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.

FEATURES
  • 72.5 degree wide-angle lens.
  • High performance in low light scenarios with Wide Dynamic Range.
  • Full 1920x1080p HD Resolutions up to 60 frames per second.
  • 2D and 3D noise reduction with our latest “low noise CMOS sensor”.
  • RS232 & RS485 (Serial), and IP (LAN/WAN) control
  • H.264, H.265, & MJPEG Streaming over RJ-45 LAN port
  • HDMI, 3G-SDI & IP streaming (all 3 simultaneously)
  • PoE (Power over Ethernet) or 12VDC
  • RTMP & RTSP IP streaming

    WHAT'S IN THE BOX
  • 12X Zoom
  • 3G-SDI Camera
  • Power Adapter + Cord
  • IR Remote Control
  • RS-232C Cable
  • User Manual

    CAMERA & LENS SPECS
  • Video Sensor: 1/2.7” CMOS, 2.12 Mega Pixel
  • Frame Rates: 1080p/60, 50, 30 & 25, 1080/60 & 50, 720p/60, 50, 30 & 25
  • Frame Rates (CVBS): 576i/30, 480i/30
  • Focal Length: 12x, F3.5mm - 42.3mm, F1.8 - F2.8
  • Lens Zoom: 12x
  • Field of View: 72.5°
  • Min Lux: 0.5 Lux at F1.8, AGC ON
  • Shutter Speed: 1/30s - 1/10000s
  • SNR: ≥55dB
  • Vertical Flip & Mirror: Supported
  • Horizontal Angle of View: 6.9° (tele) to 72.5° (wide)
  • Vertical Angle of View: 3.9° (tele) to 44.8°(wide)
  • Working Environment: Indoor

    PAN & TILT MOVEMENT
  • Pan Movement: ±170°
  • Tilt Rotation: Up: 90°, Down: 30°
  • Presets: 10 via IR (255 via Serial or IP)

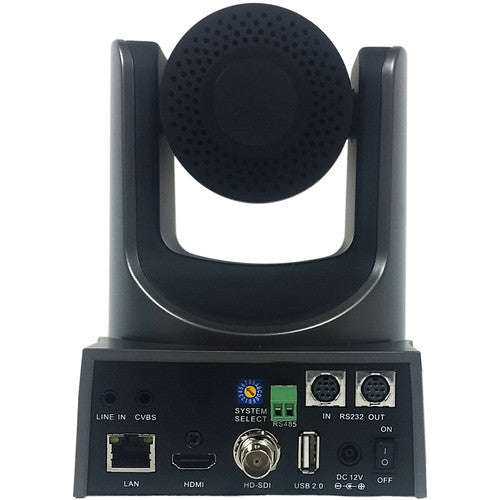

    REAR BOARD
  • Video Output Interface: HDMI, 3G-SDI, IP Streaming, CVBS
  • Network Interface: RJ45
  • Audio Interface: Line In, 3.5mm (HDMI & IP Stream Only)
  • Communication Interface: RS-232, RS-485, PELCO-D/P
  • Baud Rate: 2400/4800/9600 bits
  • Power Supply Interface: JEITA type Power Adapter (DC IN 12V)
  • 3G-SDI Interface: BNC – 75 Ohm, Female
  • USB 2.0 Interface: Future Use

    ELECTRICAL INDEX
  • Power Supply: 12W (Max)
  • Input Voltage: 12V DC (10.8 - 13.0V DC) or PoE 802.3af

    PHYSICAL SPECS
  • Dimension (in.): 5.6W x 6.5H x 6.7D (7.88H max w/ Tilt)
  • Dimensions (mm): 142W x 164H x 169D (189H max w/ Tilt)
  • Box Dimensions: 9”x9”x10” (229mmx254mmx229mm)
  • Camera Weight: 3.05 lbs. (1.38 kg)
  • Boxed Weight: 5.4 lbs. (2.45 kg)
