PTZOPTICS PT20X-SDI-GY-G2 20X Zoom 3G-SDI Camera (Grey)

PTZOPTICS

FREE Ground Shipping

OUT OF STOCK

Designed for flexible live streaming and video production environments. PTZOptics quality optical lenses and control capabilities provide endless possibilities for high definition broadcasting.

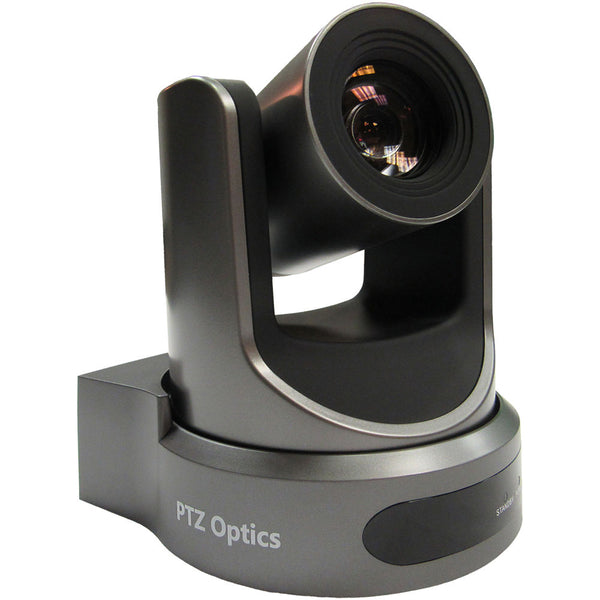

The PTZ Optics 20X-SDI is a 1080p camera with 20X optical zoom for capturing HD images at long distances. With support for 3G-SDI, HDMI, and IP streaming (H.264, H.265, & MJPEG), this camera is ideal for broadcasting high definition video signals for broadcast, recording, or video conferencing applications.

FEATURES
  • 60.7 degree wide-angle lens.
  • High performance in low light scenarios with Wide Dynamic Range.
  • Full 1920x1080p HD Resolutions up to 60 frames per second.
  • 2D and 3D noise reduction with our latest “low noise CMOS sensor”.
  • RS232 & RS485 (Serial), and IP (LAN/WAN) control
  • H.264, H.265, & MJPEG streaming over RJ-45 LAN port
  • HDMI, 3G-SDI, & IP streaming (all 3 simultaneously)
  • PoE (Power over Ethernet) or 12VDC
  • RTMP & RTSP IP streaming

    WHAT'S IN THE BOX
  • 20X Zoom 3G-SDI Camera
  • Power Adapter + Cord
  • IR Remote Control
  • RS-232C Cable
  • User Manual

    SPECIFICATIONS

    Image Sensor 1/2.7" CMOS progressive, 2.12 MP
    Capture Resolution 1080p 60/50/30/25
    1080i 60/50
    720p 60/50
    576i
    480i
    Video Standards NTSC, PAL
    Lens Integrated 4.4 - 88.5mm, f/1.8 - f/2.8
    Zoom Optical: 20x
    Digital: 16x
    Angle of View Horizontal: 3.36° (tele) to 60.7° (wide)
    Vertical: 1.89° (tele) to 34.1° (wide)
    Minimum Illumination 0.5 lux at f/1.8, AGC on
    Shutter Speed 1/30 - 1/10000 sec
    SNR ≥55 dB
    Flip / Mirror Supported (vertical)
    Working Environment Indoor
    Pan Movement ±170°
    Tilt Up: 90°
    Down: 30°
    Presets Up to 64 presets (255 presets via RS-232)

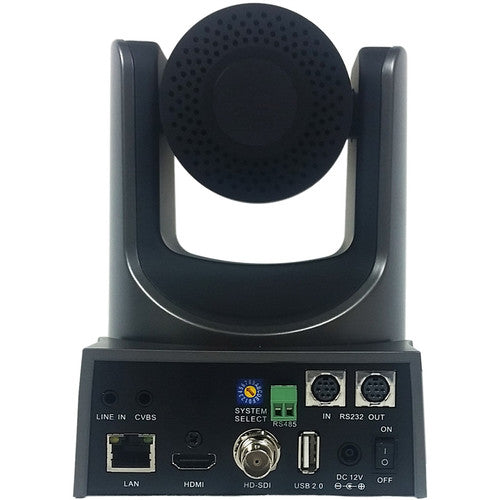

    Connectors Video Outputs:
    1 x 3G-SDI
    1 x HDMI (1.3)
    1 x RJ45 (10 m/100 m adaptive Ethernet port) (IP network interface)
    1 x 3.5 mm Composite

    Audio Interface:
    1 x 3.5 mm line in (for embedding into IP stream only)

    Communication Interface:
    1 x RS-232 input (8-pin mini-DIN) (98 ft / 30 m distance)
    1 x RS-232 output (pass-through) (8-pin mini-DIN) (98 ft / 30 m distance)
    1 x RS-485 (2-pin Phoenix port) (4920 ft / 1500 m distance)

    Firmware Updates:
    1 x USB 2.0

    *RS-232 / RS-485 Protocols: VISCA/Pelco-D/Pelco-P
    Baud Rate 2400 / 4800 / 9600 bits
    Power Supply Input: 12 VDC (10.8 - 13.0 VDC)
    JEITA power adapter (12 VDC in) included
    Power Consumption 24 W (Max)
    Operating Temperature 23 to 104°F (-5 to 40°C]
    Storage Temperature -4 to 140°F (-20 to 60°C)
    Dimensions (W × H × D) 5.6 x 6.6 x 5.9" (14.2 x 16.8 x 15.0 cm)
    With Tilt Up: 5.6 x 7.3 x 5.9" (14.2 x 18.5 x 15.0 cm)
    Weight 3 lb (1.4 kg)
