Capture every point of view with excellent 4K picture quality (requires 4K optional license****) and efficient IP production workflow

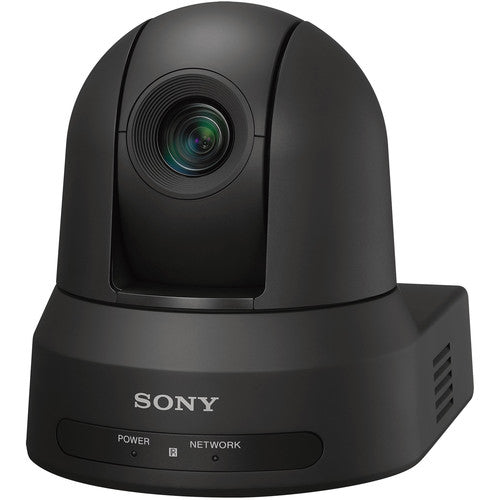

The versatile SRG-X400 remotely controlled PTZ camera is ideal for a wide range of applications - from classrooms and meeting spaces to houses of worship, lecture halls and medical environments.
The camera's 1/2.5-type Exmor R™ sensor captures up to 4K resolution images (requires optional license****) with excellent sensitivity, very low noise and rich, natural colour reproduction. It's complemented by the integrated high-resolution lens that offers zoom capability up to 40x in Full HD*** (30x in 4K), with an expansive approx. 70° wide angle coverage to capture every point of view.
High speed movement during preset recall captures the speaker's every movement, while Picture Freeze during transitions ensures your audience isn't disturbed by rapid camera movements. PTZ Motion Sync**** function allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transition.
Efficient IP-based live production is augmented with support for NDI®|HX (via optional license), allowing flexible configuration with other networked NDI®-enabled devices.
Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network.
Installation and set-up is easy, with a new Picture Setting File**** allowing the same settings to be applied to multiple cameras through a web interface from a laptop or PC.
* Requires 4K optional license available through future upgrade planned in early 2020
** NDI® is a registered trademark of NewTek, Inc.
*** With Clear Image Zoom
**** Available through future upgrade planned in early 2020
Note 1: This product contains pre-installed software and requires the purchase of licence keys to activate some functions.
Note 2: When using RM-IP500 firmware should be updated to V2.10 and for RM-IP10, firmware should be updated to V2.17.
Excellent images, even in low light The sensitive 1/2.5-type Exmor R™ sensor captures high-quality images with very low noise, even in dimly-lit environments.
4K upgrade option Upgrade to 4K shooting via optional license (availability planned in early 2020).
Up to 40x zoom Powerful zoom up to 40x* (in Full HD) allows finely detailed frame-filling close-ups. Responsive autofocus ensures that images stay clear and sharp, even at high zoom settings.
* With Clear Image Zoom
Wide viewing angle Cover the whole scene in meetings and lecture theatres with a horizontal viewing angle of approx. 70°.
Ideal for lecture caputure Use the camera in conjunction with the AI-based REA-C1000 Edge Analytics Appliance to smoothly track the speaker's movements and automatically generate a cut-out image of speaker.
High speed movement and Picture Freeze Preset Accurately capture the presenter's movements with maximum 300°/s pan and tilt movement during preset recall. Picture Freeze Preset maintains a steady image while the camera moves to a new preset position – with no uncomfortable transitions for your audience.
Smooth pan-tilt-zoom PTZ Motion Sync function* allows smooth blending of separate pan, tilt and zoom movements for seamless, professional-looking transitions.
* Available through future upgrade planned in early 2020.

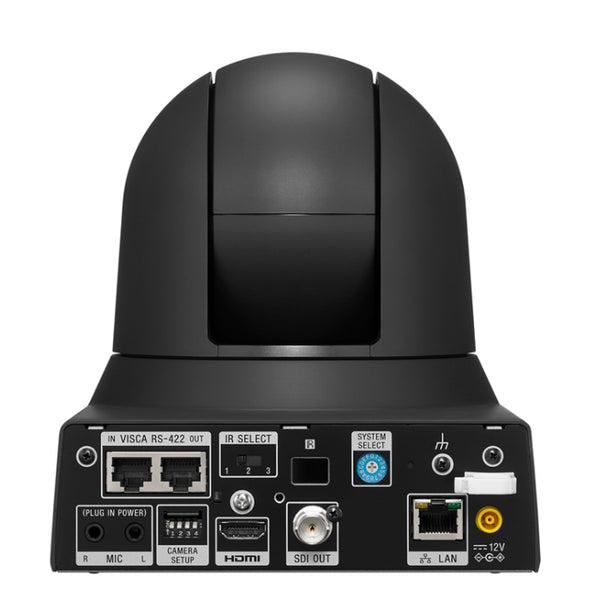

Simpler installation, lower costs A single network cable carries camera power, video output and control signals to simplify installation and reduce cabling costs.
Support for NDI®*|HX NDI®|HX compatibility (via optional license) enables cost-effictive school studio system integration, allowing flexible configuration with other networked NDI®-enabled devices.
* NDI® is a registered trademark of NewTek, Inc. Network services, content, and the [operating system and] software of this Product may be subject to individual terms and conditions and changed, interrupted or discontinued at any time and may require fees, registration and credit card information.
Remote viewing View pictures remotely over the Internet from a web browser, with support for RTSP.
Fast, fuss-free set-up The new Picture Setting File* function can apply the same camera settings among multiple cameras for fast set-up.
*Available through future upgrade planned in early 2020
