VADDIO 999-9590-000 OneLINK HDMI for RoboSHOT HDMI Cameras

VADDIO

FREE Ground Shipping

IN STOCK

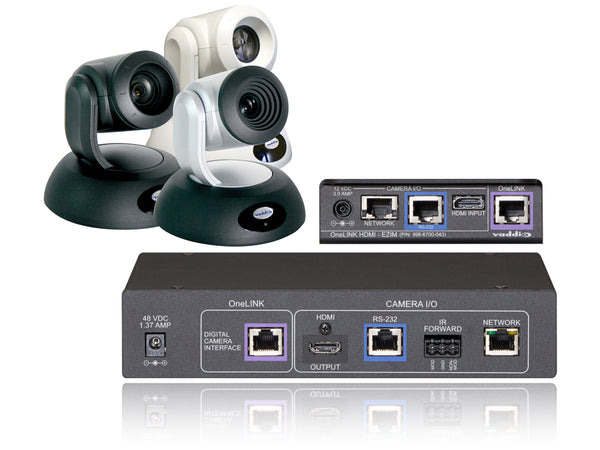

The OneLINK HDMI is a two-piece system that consists of the OneLINK EZIM (EZCamera Interface Module) camera interface at the camera location and the OneLINK HDMI Interface. The EZIM provides the required camera connectivity that is mounted to the underside of the RoboSHOT HDMI wall mount while the OneLINK HDMI interface includes the HDMI receiver, power supply for the camera and a bi-directional control channel for Ethernet.

Powered by HDBaseT Technology, the OneLINK HDMI system sends and regulates power to the RoboSHOT HDMI and provides bi-directional control channels for Ethernet and RS-232. Additionally, the OneLINK HDMI has the ability to transmit and receive uncompressed HDMI digital video up to, and including, 2160p/30 on one single Cat 5e/6 cable.

  • Single Cat-5e/6 camera extension system using HDBaseTâ„¢
  • Extends HDMI Video, power and control (RS-232 and Ethernet) up to 328’ (100m) on a single Cat-5e/6 cable
  • Includes OneLINK HDMI Interface
  • Includes OneLINK HDMI EZIM (camera-end) and camera cables
  • Power Supply and AC Cord Set

  • Included Cables (camera side): One (1) 12” (305mm) HDMI Male to Male camera cable, Two (2) 12” (305mm) Cat-5e Patch Cables (Ethernet and RS-232), One (1) 12” (305mm) power cable
  • Video Support: HDMI resolutions up to 1080p/60 for the RoboSHOT HDMI cameras. The OneLINK architecture will support up to 2160p/30...for the future.
  • RS-232 Support: Pass-through
  • Ethernet Support: Pass-through
  • Camera Power Support: 12 VDC, 3 Amp at EZIM
  • Cabling Distances: Up to 328’ (100m) over Cat-5e/6
  • OneLINK Interface Power Supply 48 VDC, 1.36 Amp

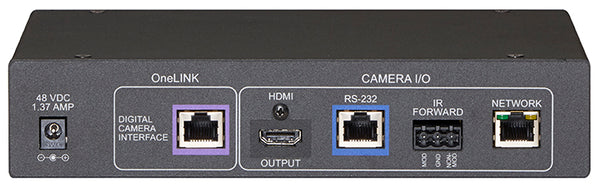

  • Connectors on OneLINK Interface: OneLINK Port on Shielded RJ-45F, HDMI Output Receptacle, Ethernet on shielded RJ-45F with LEDs, RS-232 on shielded RJ-45 connector, Power in on 5.5mm OD x 2.5mm ID Coaxial connector (positive Center), IR Forward on 3-pin Phoenix-style connector

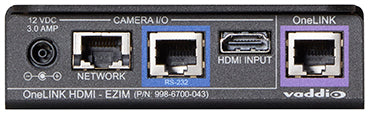

  • Connectors on OneLINK EZIM: OneLINK Port on Shielded RJ-45F, HDMI Input Receptacle, Ethernet on shielded RJ-45F with LEDs, RS-232 on shielded RJ-45 connector, Power out on EIAJ-04 connector.
  • OneLINK Interface Dimensions (H x W x D - not including Space-time): 1.72” (43.7mm) H x 8.375” (212.7mm) W x 6.00” (152.4mm) D
  • OneLINK EZIM Dimensions (H x W x D): 3.861” (98.07mm) H x 4.310” (109.47mm) W x 1.24” (31.5mm) D
  • OneLINK Interface Weight: 1.553 lbs. (703.1g)
  • OneLINK EZIM Weight: 0.553 lbs. (249.5g)
  • Operating Temperature/Humidity: 0°C (32°F) to 40°C (104°F), 20% to 80% Relative Humidity
  • Storage Temperature -20°C (-4°F) to +60°C (140°F)
