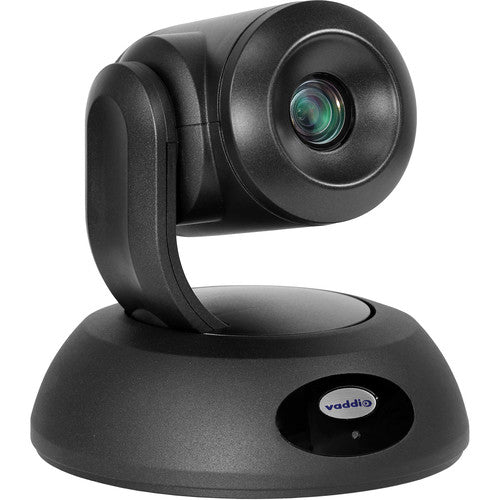

For PTZ video installations that require an NDI® signal, there is no better option than the RoboSHOT® 30E NDI® camera. This Elite Series camera complies with the most rigorous NDI standards to deliver the lowest latency for live, on-air camera control, switching and streaming. Achieve plug and play simplicity by connecting the camera to the network and opening your NewTek control software. The camera is instantly available for NDI control and streaming without installing any additional drivers.
Designed with an 1/2.5-type Exmor R CMOS sensor, RoboSHOT Elite cameras deliver striking, high-definition video image quality. Cutting-edge image signal processing (ISP) results in better light-gathering capabilities, incredible contrast and sharp 1080p/60 video, even in dim lighting conditions.
RoboSHOT Elite cameras offer enhanced wide dynamic range, which can help correct for environments with uneven lighting by making darker or over-bright areas in video more visible and detailed.
The RoboSHOT 30E cameras have a 20x optical zoom and an additional 10x of IntelliZoomTM Image Processing, to zoom greater distances without compromising any resolution quality of the image. Most digital zooms use electronic cropping to get closer to the subject, resulting in fuzzy images. IntelliZoom image processing technology compares patterns found in adjacent pixels and creates new pixels to match selected patterns, resulting in more realistic, higher-quality images.
The Elite Series of RoboSHOT PTZ cameras is equipped with Vaddio's industry-leading Tri-Synchronous Motion technology, allowing all three axes of the camera to move simultaneously for ultra-smooth, natural camera motion.
The RoboSHOT 30E cameras are ideal for larger spaces such as large meeting rooms, lecture halls, conference centers, and houses of worship.
The RoboSHOT 30E NDI camera complies with the most rigorous NDI standards to deliver the lowest latency for live, on-air camera control, switching and streaming.

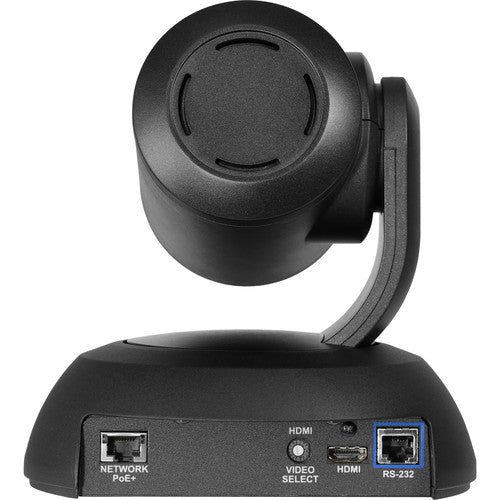

Video outputs include simultaneous HDMI and NewTek NDI streaming.
RoboSHOT 30E NDI camera (white or black)
PoE+ Midspan Power Injector
Thin Profile Wall Mount (white or black) with mounting hardware and installation manual
Vaddio IR Remote Commander
- Color: Black, White
- Product Width: 7.05" (17.91 cm)
- Product Height: 6.94" (17.63 cm)
- Product Depth: 6.75" (17.15 cm)
- Product Weight: 4.85 lbs (2.2 kg)
- Signal Type: HDMI, RS-232, NDI
- Power Type: PoE+
- Output Ports: HDMI, NDI
- Zoom: 30x
- Max Resolution: 1080p/60
- Field of View: 70.2° Wide End to 4.1° Tele End
- Estimated Room Size: Large Conference Room, Large Venue
- Minimum Illumination: 1.0 Lux (F1.6), 100+ Lux Recommended
- Browser-based User Interface for Remote Control: Built-in
- Control Method: Joystick, Web UI, Telnet, RS-232 and IR Remote, NDI
- OneLINK HDMI adds: 328 ft (100 M) Power, Video, Control Extension, HDMI
- OneLINK Bridge adds: 328 ft (100 M) Power, Video, Control Extension, HDMI, 3G-SDI, USB 3.0, Audio Mixer
- PTZ Motors: Silent BLDC Direct Drive Motors
- Tri-Sync Motion: Yes
- Pan and Tilt Range: Pan: ±160°, Tilt: +90° to -30°
- Pan and Tilt Speed: 0.35°/sec to 120°/sec
- Pixels: 8.51 Megapixel (8.57 Total MP)
- Top Resolution: 1080p/60
- Invertible: Yes
- Focus System: Auto, Manual
- Gain: Auto, Manual
- Operating Temperature: 32° to 104°F (0° to 40°C)
- Preset Positions: 16 + Custom Home Position
- White Balance: Auto, Manual, One-Push
- Warranty: 2 years
- Power Supply: PoE+ Midspan Power Injector
- Quick-Connect Compatibility: No
NDI® is a registered trademark of NewTek, Inc.
