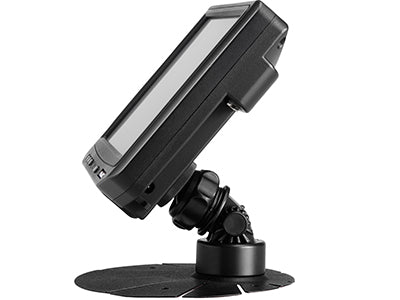

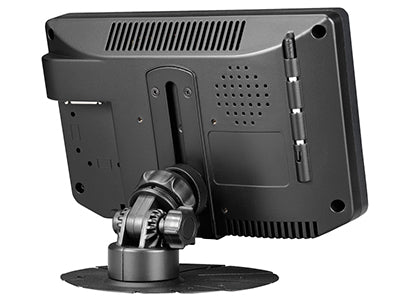

Xenarc Technologies Corp. extended the versatility of its iconic 700 series line of displays with the introduction of a 7" LED LCD screen with HDMI input and Touchscreen. The unit incorporates our latest LED backlight technology for increased brightness and has an ambient light sensor which dims the backlight automatically when required. In addition, Chip Monolithic Ceramic Capacitors are used though out the unit for improved stability and durability especially in extreme temperature conditions.For In-Car Computing, PC, Server, GPS, and various VGA, HDMI, and DVI UseHigh Bright LCD Panel with LED Backlight5-wire resistive Touch Screen (USB)Multi-Monitor Touchscreen SupportHDMI Input x 1, VGA Input (15 pin D-SUB) x 1 & Video Input x 2DVI Input through included DVI to HDMI adaptorSupports HDCPAudio Input x 3 / Built-in SpeakerNTSC / PAL Multi-System16x9 Aspect RatioHigh Resolution DisplayAuto detects 800x480 resolutionUpgraded High-Brightness LED BacklightChip Monolithic Ceramic Capacitors for improved durabilityAutomatic backlight level adjustment through built-in ambient light sensorPixelworks High Performance Image and Video Signal ProcessorAISS - Advanced Image-Scaling and Shaping16:9 / 4:3 Scaler settingsLast Input memoryLast Power setting memoryIR Remote ControlAuto power-on upon signal detectionAutomatic display adjustmentOn Screen Display ControlMirror Image FlipVertical Image FlipFunction to disable front button(s)Function to disable On Screen TextAV2 Auto Switching for backup cameraCopper Stand: 360Â° / Height AdjustmentVESA 50mm mounting holes26-Pin heavy-duty connectorAnti Glare CoatingSupports 10V DC ~ 30V DC"E" Mark Certified for Automotive use
This versatile product incorporates the innovation of our HDMI 7" models along with a 5-wire resistive Touch-Screen panel. Use the convenient touch-screen as your input device, control your mouse cursor or the mini on screen keyboard that comes with your operating system. The touch screen utilizes the USB port as the interface. You can connect several 700TSH monitors to your computer and the touchscreens would work simultaneously through the multi-monitor support.
SPECIFICATIONSScreen Size: Diagonal 7" (16:9)Physical Resolution: 800 (H) x 480 (V) WVGASupported PC Resolution: 640 x 480 ~ 1920 x 1080Supported HDMI video Signal: 480i, 480p, 720i, 720p, 1080i, 1080pDot Resolution: 2400 x 480 = 1,152,000 (dots)Brightness: 500 cd/mÂ²Contrast Ratio: 400:1Viewing Angle: 140Â° Horizontal, 120Â° VerticalResponse Time (Tr/Tf): 10/15ms (Typ.)Touch Screen Interface: USB portOperating Voltage Range: DC 10V ~ 30VPower Supply: DC 12VPower Consumption: < 10WOperating Temperature: -4Â°F ~ 158Â°FStorage Temperature: -22Â°F ~ 176Â°FDimension (mm): 196W x 121.5H x 35DWeight (lb): 1.54FCC, CE, E13 CertificationROHS CompliantSupports HDCP24 Month Warranty30 days No dead Pixel Guarantee
