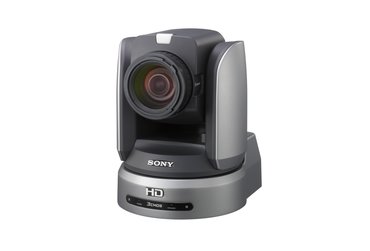

SONY BRCH900 HD 1/2 type 3CMOS P/T/Z Color Video Camera


FREE Ground Shipping


The BRC-H900 is a 1/2" 3CMOS Pan/Tilt/Zoom color video camera that delivers exceptionally high picture quality to meet demanding live production requirements.

  • 1/2-type Exmor Full HD 3CMOS Image Sensor
  • Approximately 2 Megapixels of Effective Picture Elements
  • 1080/59.58i, 720/59.98p, NTSC
  • 1080/50i, 720/50p, PAL
  • 4 lx (F1.9 +24dB) Minimum illumination
  • 50dB Video S/N Ratio
  • 14x Optical Zoom
  • HD Video Output: Analog RGB/Component, SDI (HD/SD switchable)
  • SD Video Output: Composite, Y/C
  • External sync input
  • 16 position presets
  • RS-232C/RS-422 serial control (VISCA protocol)
  • Daisy chain capability (up to 7 units)
  • Image stabilization function that reduce vibration
  • Multi-function IR Remote Commander� unit
  • OSD (On-Screen Display)


    1/2 inch Exmor 1920x1080 3CMOS P/T/Z Camera The BRC-H900 delivers greatest sensitivity (F10) and horizontal resolution (more than 1,000 TV lines in HD-SDI output) to meet the needs of high quality conscious applications. These features will enable more users to enjoy the benefits of remote control cameras, particularly in education, wedding, and corporate applications. These advanced remote capabilities allow for a reduction in manned operation.

    Superb Picture Quality
  • Thanks to Sony's reputable image sensor technology, the BRC-H900 remote camera delivers exceptionally high picture quality to meet demanding live production requirements. The F10 high sensibility and 50dB S/N Ratio is an advantage in low light situations. This innovative technology helps users adjust to shooting environments with extreme variable lighting, such as outdoor shoots and concerts where lighting situations may not be consistent.

    Flexible Installation
  • In addition to a typical desktop installation, all of the BRC Series cameras can be mounted to the ceiling. Also with the use of a tripod and tripod screw, these cameras are also suitable for mobile applications, such as live events.

    Advanced Color Adjustment
  • The BRC-H900 is equipped with a variety of picture adjustment features, including color, gamma, black, and knee settings. These feature-rich color adjustment functions allow fine tuning to meet professional demands.

    14x Optical Zoom
  • By incorporating a 14x optical zoom lens, the BRC-H900 enables users to zoom in on small and distant objects with a high degree of accuracy.

    1080i, 720p, and SD Output
  • The BRC-H900 simultaneously delivers stunning HD images (1080i or 720p) and SD analog images. This dual-output capability allows the camera to be integrated into both an HD and SD system, which is good for users who want to upgrade to complete HD.

  • Tilt Angle: -30 to +90 degrees
  • Tilt Speed: 0.22 to 60 degrees/sec

  • Analog Output: RGB / Y/Pb/P(D-sub 15-pin), Y/C, Composite
  • Angle of View (H): 59.6 degrees (Wide End)
  • Backlight Compensation: On/Off
  • Built-In Video Output: SDI (HD/SD Selectable); D-sub 15 pin: HD video out; Y/Pb/Pr or RGB, HD, VD or SYNC; Y/C; Composite
  • CCD Effective Pixels : Approx. 2.07 mega pixels (CMOS)
  • Camera Control Interface: Mini DIN 8 pin: RS-232C (VISCA In/Out), Connector plug 9 pin: RS-422 (VISCA In/Out)
  • Dimensions (W x H x D): 198 x 260 x 238 mm (7 7/8 x 10 1/4 x 9 3/8 inches)
  • Effective Pixels: Approx. 2 Megapixels
  • Focal Length: f=5.8 to 81.2 mm (F1.9 to F2.8)
  • Focus System: Auto/Manual
  • Gain: Auto/Manual (-3 to 24 dB)
  • Horizontal Resolution: 1000 TV lines
  • Image Device: 1/2-type Exmor 3CMOS image sensor
  • Image Flip: On/Off
  • Lens: 14x Optical Zoom
  • Minimum Illumination: 4 lx (50 IRE, F1.9, +24 dB)
  • Minimum Object Distance: 300 mm (Wide), 800 mm (Tele)
  • ND Filter: N/A
  • Operating Temperature: 32 to 104 ËšF (0 to 40 ËšC)
  • Optical Image Stabilizer: On / Off
  • Pan Angle: -170 to + 170 degrees
  • Pan/Tilt Angle: -170 to +170 degrees (Pan), -30 to +90 degrees (Tilt)
  • Pan/Tilt Speed: 0.22 to 60 degrees (Pan/Tilt)
  • Power Consumption: Max 28.8W (without optional cord); Max 34.2W (with optional cord)
  • Power Requirements: DC: 10.8V to 13.2V
  • Preset Positions: 16 Positions
  • S/N Ratio: 50 dB
  • Shutter Speed: 1/8000 to 1/60 s or 1/8000 to 1/50 s
  • Signal System: 1080/59.94i, 720/59.94p, NTSC1080/50i, 720/50p, PAL
  • Storage Temperature: -20 degrees to 60°C (-4°F to 104°F)
  • Synchronization: Internal/External
  • HD Video Output: SDI (HD/SD Switchable) + D-Sub 15 pin: Component (Y/Pb/Pr) or RGB, HD, VD or SYNC
  • SD Video Output: Composite, Y/C
  • Weight: 5.0 kg (11 lb 0.37 oz.)
  • White Balance: Auto/Indoor/Outdoor/One-push/Manua
