YOLOLIV YoloBox Portlable Livestream Studio


FREE Ground Shipping

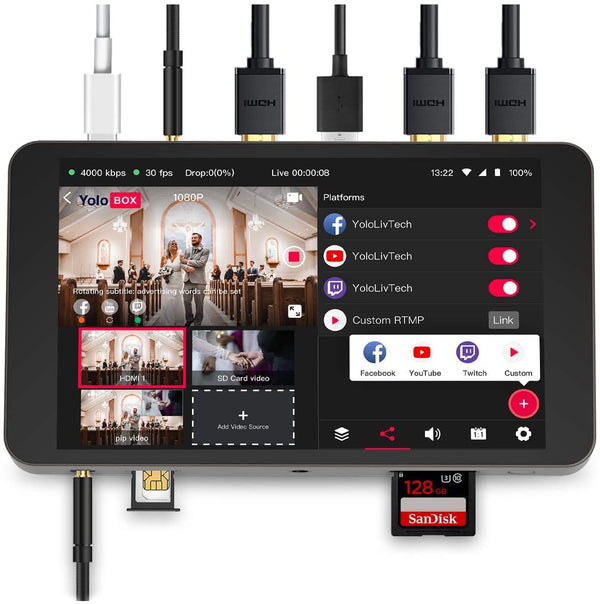

  • Touch Screen Live Production: With encoder, switcher, monitor and record built in one, YoloBox is a studio and playback device featuring full HD live stream.
  • Cross Platforms Streaming: Stream your live event to three destinations simultaneously. Seamless integration with major platforms including Facebook, Youtube, Twitter and RTMPs

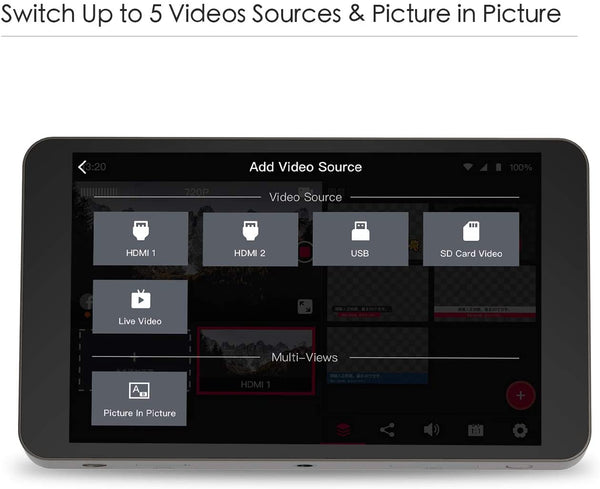

  • Multi-Camera Capture: Switch up to 5 video sources simultaneously.

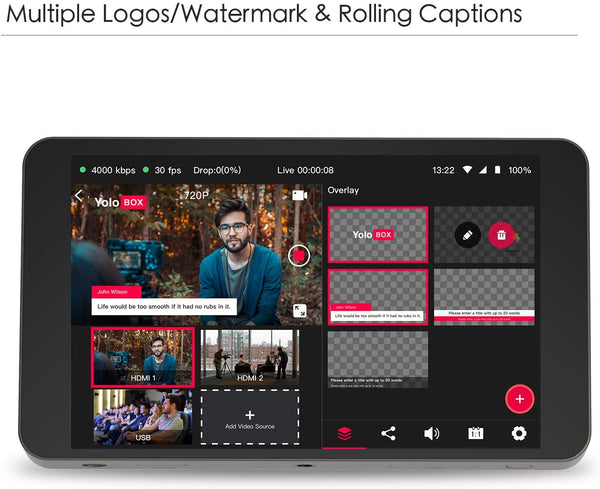

  • Live Production Features: Picture-in-picture templates, custom graphic layers, watermarks and much more



  • Video Encoded Format: H.264
  • Audio Encoded Format: AAC (48k)
  • Video Recorded format: MP4
  • Audio Input Format: 32kHz, 44.1kHz, 48kHz, 16-bit
  • Video Input Format: 1080i/720p/1080p
  • Video Recorded Resolution: Up to 1080p:60fps
  • Live Broadcast Resolution: 540P/720P/1080P
  • Storage Card Type: SD Card
  • Storage Card Capacity: Expanded to 128G
  • WiFi: 2.4G/5G, Support 802.11a/b/g/n/ac
  • 4G Network: LTE-FDD B2/4/5/7/12/13/17/25/26,LTE-TDD B41
  • SIM Card Size: Standard SIM Card
  • Network Protocol: RTMP

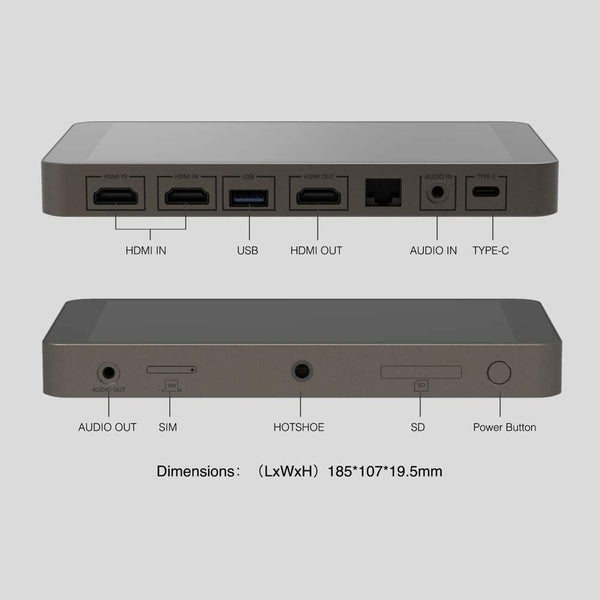

  • Interfaces: HDMI IN 1; HDMI IN 2; USB 3.0(For camera connect); HDMI OUT; Ethernet; Audio in(3.5mm); USB-C(For charging); Audio out(3.5mm); Micro SIM Card Holder; 1/4 Screw Hole;SD Card Holder
  • Power Interface: Type C, Quick Charge 3.0
  • Battery Capacity: 3.7V/5700mAh
  • Operating Temperature: -10°C-40°C
  • Storage Temperature: 5°C-40°C
  • Dimensions (LxWxH):185x107x19.5mm
  • Weight:480g
